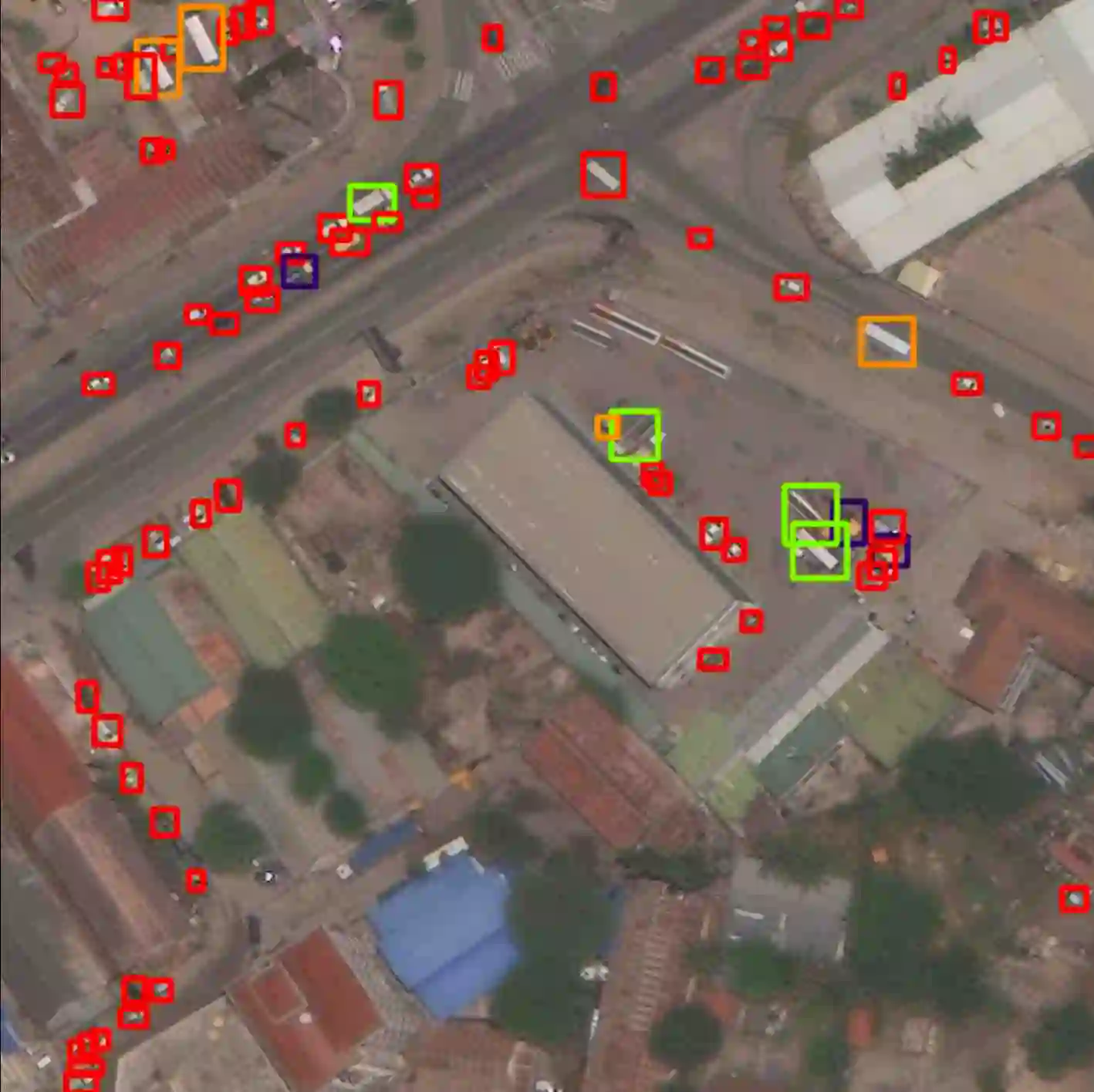

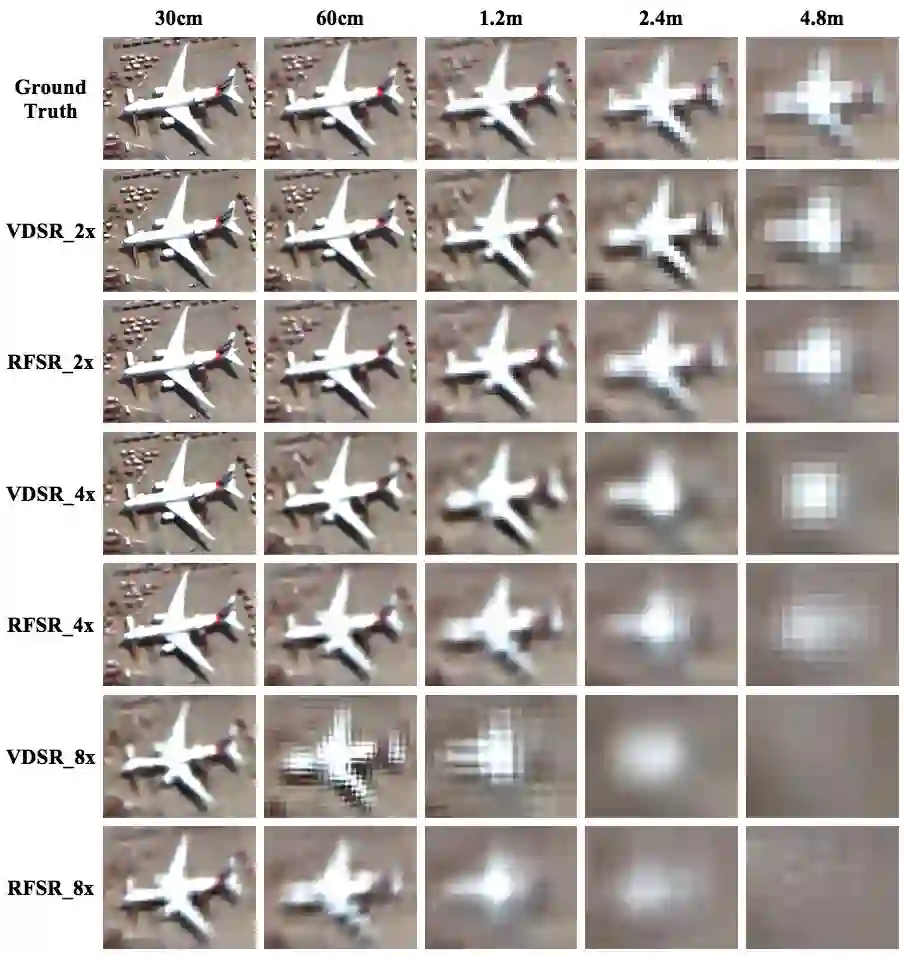

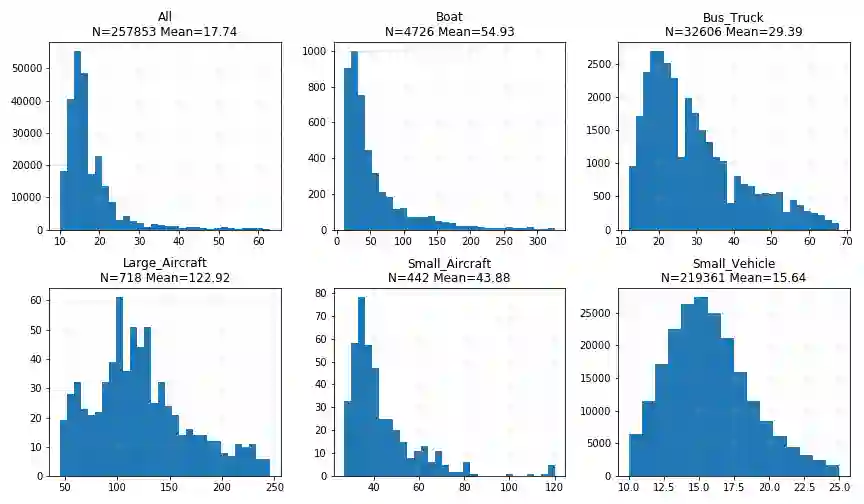

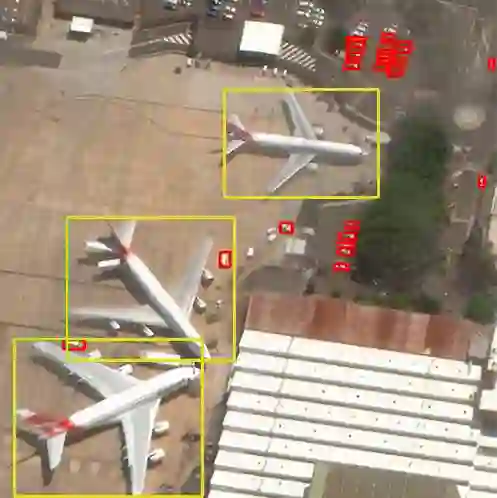

We explore the application of super-resolution techniques to satellite imagery, and the effects of these techniques on object detection algorithm performance. Specifically, we enhance satellite imagery beyond its native resolution, and test if we can identify various types of vehicles, planes, and boats with greater accuracy than native resolution. Using the Very Deep Super-Resolution (VDSR) framework and a custom Random Forest Super-Resolution (RFSR) framework we generate enhancement levels of 2x, 4x, and 8x over five distinct resolutions ranging from 30 cm to 4.8 meters. Using both native and super-resolved data, we then train several custom detection models using the SIMRDWN object detection framework. SIMRDWN combines a number of popular object detection algorithms (e.g. SSD, YOLO) into a unified framework that is designed to rapidly detect objects in large satellite images. This approach allows us to quantify the effects of super-resolution techniques on object detection performance across multiple classes and resolutions. We also quantify the performance of object detection as a function of native resolution and object pixel size. For our test set we note that performance degrades from mAP = 0.5 at 30 cm resolution, down to mAP = 0.12 at 4.8 m resolution. Super-resolving native 30 cm imagery to 15 cm yields the greatest benefit; a 16-20% improvement in mAP. Super-resolution is less beneficial at coarser resolutions, though still provides a 3-10% improvement.


翻译:我们探索超分辨率技术在卫星图像中的应用,以及这些技术对物体探测算法性能的影响。具体地说,我们加强卫星图像,使其超出其本地分辨率,并测试我们是否能够查明各种类型的车辆、飞机和船只,其精确度高于本地分辨率。我们利用深度超分辨率(VDSR)框架和自定义随机森林超级分辨率(RFSR)框架,在5个不同分辨率(从30厘米到4.8米)之间,提高2x、4x和8x。我们利用本地和超溶解数据,然后利用SIMRDWN天体探测框架培训若干自定探测模型。SIMRDWN天体探测框架,并测试我们能否将一些受欢迎的物体探测算法(例如SSD、YOLO)合并为一个统一框架,以快速探测大型卫星图像中的物体。这个方法使我们能够量化超分辨率对多个等级和分辨率的物体探测性能的影响。我们还用本地分辨率和天体大小来量化物体探测的性能,作为本地分辨率和天体大小的改进功能。我们测试组的测试显示,在MAMAMAM 0.30分辨率中,从甚为最接近0.15的性分辨率的性分辨率的性性能,在MAAP分辨率为0.3m=0.3m=0.30平方平方平方。
