查找.NET Core 3.0 占用CPU 100%的原因

2019 年 6 月 26 日 DotNet

（给DotNet加星标，提升.Net技能）

转自：zhouandke

cnblogs.com/zhouandke/p/11070114.html

公司的产品一直紧跟 .NET Core 3.0 preview 不断升级, 部署到 Linux 服务器后, 偶尔会出现某个进程CPU占用100%.

mkdir NetCoreDumpTest && cd NetCoreDumpTest
dotnet new console

编辑Program.cs

namespace NetCoreDumpTest
{
    using System;
    using System.Threading.Tasks;
    class Program
    {
        static void Main(string[] args)
        {
            Task.Factory.StartNew(() => PrintNumber("Print", 5));
            Console.WriteLine("Press any key to exit.");
            Console.ReadKey();
        }
        static void PrintNumber(string message, int startNumber)
        {
            var number = startNumber;
            while (true)
               Console.WriteLine($"{message} {number++}");
        }
    }
}

2、安装dotnet-dump

dotnet tool install --global dotnet-dump --version 1.0.4-preview6.19311.1

提示

If you are using bash, you can add it to your profile by running the following command:

cat << \EOF >> ~/.bash_profile
# Add .NET Core SDK tools
export PATH="$PATH:/home/****/.dotnet/tools"
EOF
You can add it to the current session by running the following command:

export PATH="$PATH:/home/****/.dotnet/tools"

You can invoke the tool using the following command: dotnet-dump
Tool 'dotnet-dump' (version '1.0.4-preview6.19311.1') was successfully installed.

top -Hp 3411
   PID USER      PR  NI    VIRT    RES    SHR S %CPU %MEM     TIME+ COMMAND
z*****e    20   0 2997700  29060  22400 R 10.3  1.4   0:20.68 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.11 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.02 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.00 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.00 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.01 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.00 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.00 dotnet
z*****e    20   0 2997700  29060  22400 S  0.0  1.4   0:00.00 dotnet

获取dump, 只能正对进程进行dump, 所以我们输入的是 3411

dotnet-dump collect -p 3411
Writing minidump with heap to /tmp/core_20190623_075649
Complete

4、分析

dotnet-dump analyze core_20190623_075649

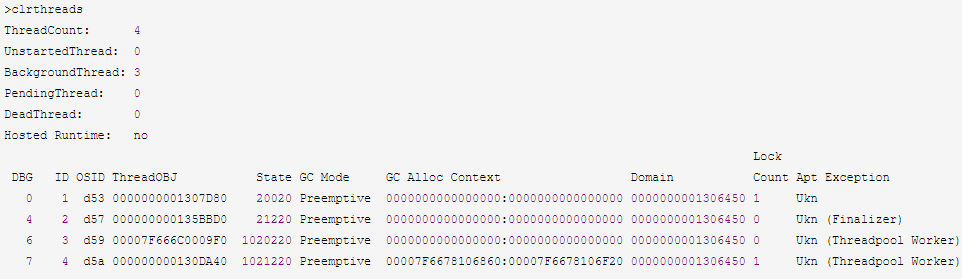

使用clrthreads 查看所有线程

我们关心的线程3418的16进制是d5a, 也就是最后一行, 它的DBG是7, 我们需要使用 setthread 7, 将其设置为当前操作的线程

然后使用 clrstack 获取线程调用信息

> setthread 7
> clrstack
OS Thread Id: 0xd5a (7)
        Child SP               IP Call Site
00007F6715561558 00007f671a2bd4bd [InlinedCallFrame: 00007f6715561558] Interop+Sys.Write(System.Runtime.InteropServices.SafeHandle, Byte*, Int32)

00007F6715561558 00007f669f669a9e [InlinedCallFrame: 00007f6715561558] Interop+Sys.Write(System.Runtime.InteropServices.SafeHandle, Byte*, Int32)

00007F6715561540 00007F669F669A9E ILStubClass.IL_STUB_PInvoke

00007F67155615E0 00007F669F67333E System.ConsolePal.Write(Microsoft.Win32.SafeHandles.SafeFileHandle, Byte*, Int32, Boolean)

00007F67155616A0 00007F669F67360C System.ConsolePal.Write(Microsoft.Win32.SafeHandles.SafeFileHandle, Byte[], Int32, Int32, Boolean) [/_/src/System.Console/src/System/ConsolePal.Unix.cs @ 1236]

00007F67155616C0 00007F669F672B2A System.IO.StreamWriter.Flush(Boolean, Boolean) [/_/src/System.Private.CoreLib/shared/System/IO/StreamWriter.cs @ 261]

00007F6715561710 00007F669F6729F3 System.IO.StreamWriter.WriteLine(System.String) [/_/src/System.Private.CoreLib/shared/System/IO/StreamWriter.cs @ 474]

00007F6715561760 00007F669F6727D3 System.IO.TextWriter+SyncTextWriter.WriteLine(System.String) [/_/src/System.Private.CoreLib/shared/System/IO/TextWriter.cs @ 891]

00007F67155617A0 00007F669F672770 System.Console.WriteLine(System.String) [/_/src/System.Console/src/System/Console.cs @ 550]

00007F67155617C0 00007F669F663791 NetCoreDumpTest.Program.PrintNumber(System.String, Int32) [/home/zhouke/NetCoreDumpTest/Program.cs @ 18]

00007F6715561800 00007F669F6636D9 NetCoreDumpTest.Program+<>c.<Main>b__0_0()

00007F6715561820 00007F669F1872A1 System.Threading.Tasks.Task.InnerInvoke() [/_/src/System.Private.CoreLib/shared/System/Threading/Tasks/Task.cs @ 2466]

00007F6715561840 00007F669F18CBC2 System.Threading.Tasks.Task+<>c.<.cctor>b__274_0(System.Object) [/_/src/System.Private.CoreLib/shared/System/Threading/Tasks/Task.cs @ 2445]

00007F6715561850 00007F669F171AF2 System.Threading.ExecutionContext.RunFromThreadPoolDispatchLoop(System.Threading.Thread, System.Threading.ExecutionContext, System.Threading.ContextCallback, System.Object) [/_/src/System.Private.CoreLib/shared/System/Threading/ExecutionContext.cs @ 289]

00007F6715561890 00007F669F187111 System.Threading.Tasks.Task.ExecuteWithThreadLocal(System.Threading.Tasks.Task ByRef, System.Threading.Thread) [/_/src/System.Private.CoreLib/shared/System/Threading/Tasks/Task.cs @ 2406]

00007F6715561910 00007F669F186F28 System.Threading.Tasks.Task.ExecuteEntryUnsafe(System.Threading.Thread) [/_/src/System.Private.CoreLib/shared/System/Threading/Tasks/Task.cs @ 2344]

00007F6715561930 00007F669F186EBB System.Threading.Tasks.Task.ExecuteFromThreadPool(System.Threading.Thread)

00007F6715561940 00007F669F17B754 System.Threading.ThreadPoolWorkQueue.Dispatch() [/_/src/System.Private.CoreLib/shared/System/Threading/ThreadPool.cs @ 663]

00007F67155619C0 00007F669F169A5B System.Threading._ThreadPoolWaitCallback.PerformWaitCallback() [/_/src/System.Private.CoreLib/src/System/Threading/ThreadPool.CoreCLR.cs @ 29]

00007F6715561D50 00007f6718a1ccaf [DebuggerU2MCatchHandlerFrame: 00007f6715561d50]

哗啦啦一大片, 有点Java调用堆栈的味道, 不过我们还是找到了我们的问题代码

NetCoreDumpTest.Program.PrintNumber(System.String, Int32)

有时候我们想知道传入的什么参数导致CPU占用高, 可以给clrstack加上参数 -a

> clrstack -a
..............
00007F0DD6FFC7C0 00007F0D6EEF3791 NetCoreDumpTest.Program.PrintNumber(System.String, Int32) [/home/zhouke/NetCoreDumpTest/Program.cs @ 18]
    PARAMETERS:
        message (0x00007F0DD6FFC7E8) = 0x00007f0d4800b8b0
        startNumber (0x00007F0DD6FFC7E4) = 0x0000000000000005
    LOCALS:
        0x00007F0DD6FFC7E0 = 0x000000000014e42b
        0x00007F0DD6FFC7DC = 0x0000000000000001
...............

可以看到PARAMETERS里, startNumber作为值类型, 可以直接看到数值为5, 而message是引用类型, 指向0x00007f0d4800b8b0, 这时候需要用到 dumpobj 命令

> dumpobj 0x00007f0d4800b8b0
Name:        System.String
MethodTable: 00007f0d6ef70f90
EEClass:     00007f0d6eede1c0
Size:        32(0x20) bytes
File:        /home/zhouke/dotnet/shared/Microsoft.NETCore.App/3.0.0-preview6-27804-01/System.Private.CoreLib.dll

String:      Print
Fields:
              MT    Field   Offset                 Type VT     Attr            Value Name
00007f0d6ef6a138  400022b        8         System.Int32  1 instance                5 _stringLength
00007f0d6ef66f38  400022c        c          System.Char  1 instance               50 _firstChar
00007f0d6ef70f90  400022d      108        System.String  0   static 00007f0d47fff360 Empty
