近年来，基于深度学习的人体动作识别的研究越来越多，slowfast模型提出了快慢两通道网络在动作识别数据集上表现十分优异，本文介绍了Slowfast数据准备，如何训练，以及slowfast使用onnx进行推理，着重介绍了Slowfast使用Tensorrt推理，并且使用yolov5和deepsort进行人物追踪，以及使用C++ 部署。 >>加入极市CV技术交流群，走在计算机视觉的最前沿

1.数据准备

1.1 剪裁视频

准备多组视频数据，其中 IN_DATA_DIR 为原始视频数据存放目录， OUT_DATA_DIR为目标视频数据存放目录。这一步保证所有视频长度相同

IN_DATA_DIR="/project/train/src_repo/data/video"
OUT_DATA_DIR="/project/train/src_repo/data/splitvideo"
str="_"
if [[ ! -d "${OUT_DATA_DIR}" ]]; then
  echo "${OUT_DATA_DIR} doesn't exist. Creating it.";
  mkdir -p ${OUT_DATA_DIR}
fi

for video in $(ls -A1 -U ${IN_DATA_DIR}/*)
do
    for i in {0..10}
    do
      index=$(expr $i \* 10)
      out_name="${OUT_DATA_DIR}/${i}${str}${video##*/}"
      if [ ! -f "${out_name}" ]; then
        ffmpeg -ss ${index} -t 80 -i "${video}" "${out_name}"
      fi
    done
done

1.2 提取关键帧

关键帧是从视频每一秒中提取一帧， IN_DATA_DIR为步骤一得到视频的目录， OUT_DATA_DIR为提取的关键帧的存放目录

#切割图片，每秒1帧
IN_DATA_DIR="/project/train/src_repo/data/splitvideo/"
OUT_DATA_DIR="/project/train/src_repo/data/splitimages/"

if [[ ! -d "${OUT_DATA_DIR}" ]]; then
  echo "${OUT_DATA_DIR} doesn't exist. Creating it.";
  mkdir -p ${OUT_DATA_DIR}
fi

for video in $(ls -A1 -U ${IN_DATA_DIR}/*)
do
  video_name=${video##*/}

  if [[ $video_name = *".webm" ]]; then
    video_name=${video_name::-5}
  else
    video_name=${video_name::-4}
  fi

  out_video_dir=${OUT_DATA_DIR}/${video_name}/
  mkdir -p "${out_video_dir}"

  out_name="${out_video_dir}/${video_name}_%06d.jpg"

  ffmpeg -i "${video}" -r 1 -q:v 1 "${out_name}"
done


1.3 分割视频

将步骤一生成的视频通过 ffmpeg进行分帧，每秒30帧， IN_DATA_DIR为存放视频目录， OUT_DATA_DIR为存放结果目录

IN_DATA_DIR="/project/train/src_repo/video"
OUT_DATA_DIR="/project/train/src_repo/spiltvideo"

if [[ ! -d "${OUT_DATA_DIR}" ]]; then
  echo "${OUT_DATA_DIR} doesn't exist. Creating it.";
  mkdir -p ${OUT_DATA_DIR}
fi

for video in $(ls -A1 -U ${IN_DATA_DIR}/*)
do
  out_name="${OUT_DATA_DIR}/${video##*/}"
  if [ ! -f "${out_name}" ]; then
    ffmpeg -ss 0 -t 100 -i "${video}" "${out_name}"
  fi
done

1.4 文件目录

ava  #一级文件夹，用来存放视频信息
—person_box_67091280_iou90 #二级文件夹，用来存放目标检测信息文件夹
——ava_detection_train_boxes_and_labels_include_negative_v2.2.csv #二级文件夹下文件，用来存放目标检测的信息，用于训练
——ava_detection_val_boxes_and_labels.csv #二级文件夹下文件，用来存放目标检测的信息，用于测试
—ava_action_list_v2.2_for_activitynet_2019.pbtxt #一级文件夹下的文件，用来存放标签信息
—ava_val_excluded_timestamps_v2.2.csv #一级文件夹下的文件，用来没有人物的帧，在训练过程中会抛弃这些帧
—ava_train_v2.2.csv #一级文件夹下的文件，用来存放训练数据，关键帧的信息
—ava_val_v2.2.csv  #一级文件夹下的文件，用来存放验证数据，关键帧的信息

frame_lists  #一级文件夹，存放1.3中生成的图片的路径
—train.csv
—val.csv

frames  #一级文件夹，存放1.3中生成的图片
—A
…
—B
…

2.环境准备

2.1 环境准备

pip install iopath
pip install fvcore
pip install simplejson
pip install pytorchvideo

2.2  detectron2 安装

!python -m pip install pyyaml==5.1
import sys, os, distutils.core
# Note: This is a faster way to install detectron2 in Colab, but it does not include all functionalities.
# See https://detectron2.readthedocs.io/tutorials/install.html for full installation instructions
!git clone 'https://github.com/facebookresearch/detectron2'
dist = distutils.core.run_setup("./detectron2/setup.py")
!python -m pip install {' '.join([f"'{x}'" for x in dist.install_requires])}
sys.path.insert(0, os.path.abspath('./detectron2'))

3.slowfast 训练

3.1 训练

python tools/run_net.py --cfg configs/AVA/SLOWFAST_32x2_R50_SHORT.yaml

SLOWFAST_32x2_R50_SHORT.yaml

TRAIN:
  ENABLE: Fasle
  DATASET: ava
  BATCH_SIZE: 8 #64
  EVAL_PERIOD: 5
  CHECKPOINT_PERIOD: 1
  AUTO_RESUME: True
  CHECKPOINT_FILE_PATH: '/content/SLOWFAST_32x2_R101_50_50.pkl'  #预训练模型地址
  CHECKPOINT_TYPE: pytorch
DATA:
  NUM_FRAMES: 32
  SAMPLING_RATE: 2
  TRAIN_JITTER_SCALES: [256, 320]
  TRAIN_CROP_SIZE: 224
  TEST_CROP_SIZE: 224
  INPUT_CHANNEL_NUM: [3, 3]
  PATH_TO_DATA_DIR: '/content/ava'
DETECTION:
  ENABLE: True
  ALIGNED: True
AVA:
  FRAME_DIR: '/content/ava/frames'   #数据准备阶段生成的目录
  FRAME_LIST_DIR: '/content/ava/frame_lists'
  ANNOTATION_DIR: '/content/ava/annotations'
  DETECTION_SCORE_THRESH: 0.5
  FULL_TEST_ON_VAL: True
  TRAIN_PREDICT_BOX_LISTS: [
    "ava_train_v2.2.csv",
    "person_box_67091280_iou90/ava_detection_train_boxes_and_labels_include_negative_v2.2.csv",
  ]
  TEST_PREDICT_BOX_LISTS: [
    "person_box_67091280_iou90/ava_detection_val_boxes_and_labels.csv"]


SLOWFAST:
  ALPHA: 4
  BETA_INV: 8
  FUSION_CONV_CHANNEL_RATIO: 2
  FUSION_KERNEL_SZ: 7
RESNET:
  ZERO_INIT_FINAL_BN: True
  WIDTH_PER_GROUP: 64
  NUM_GROUPS: 1
  DEPTH: 50
  TRANS_FUNC: bottleneck_transform
  STRIDE_1X1: False
  NUM_BLOCK_TEMP_KERNEL: [[3, 3], [4, 4], [6, 6], [3, 3]]
  SPATIAL_DILATIONS: [[1, 1], [1, 1], [1, 1], [2, 2]]
  SPATIAL_STRIDES: [[1, 1], [2, 2], [2, 2], [1, 1]]
NONLOCAL:
  LOCATION: [[[], []], [[], []], [[], []], [[], []]]
  GROUP: [[1, 1], [1, 1], [1, 1], [1, 1]]
  INSTANTIATION: dot_product
  POOL: [[[1, 2, 2], [1, 2, 2]], [[1, 2, 2], [1, 2, 2]], [[1, 2, 2], [1, 2, 2]], [[1, 2, 2], [1, 2, 2]]]
BN:
  USE_PRECISE_STATS: False
  NUM_BATCHES_PRECISE: 20
SOLVER:
  BASE_LR: 0.1
  LR_POLICY: steps_with_relative_lrs
  STEPS: [0, 10, 15, 20]
  LRS: [1, 0.1, 0.01, 0.001]
  MAX_EPOCH: 20
  MOMENTUM: 0.9
  WEIGHT_DECAY: 1e-7
  WARMUP_EPOCHS: 5.0
  WARMUP_START_LR: 0.000125
  OPTIMIZING_METHOD: sgd
MODEL:
  NUM_CLASSES: 1
  ARCH: slowfast
  MODEL_NAME: SlowFast
  LOSS_FUNC: bce
  DROPOUT_RATE: 0.5
  HEAD_ACT: sigmoid
TEST:
  ENABLE: False
  DATASET: ava
  BATCH_SIZE: 8
DATA_LOADER:
  NUM_WORKERS: 0
  PIN_MEMORY: True
NUM_GPUS: 1
NUM_SHARDS: 1
RNG_SEED: 0
OUTPUT_DIR: .

3.2 训练过程常见报错

1. slowfast/datasets/ava_helper.py 中 AVA_VALID_FRAMES改为你的视频长度

2. pytorchvideo.layers.distributed报错

from pytorchvideo.layers.distributed import ( # noqa
ImportError: cannot import name 'cat_all_gather' from 'pytorchvideo.layers.distributed'
(/site-packages/pytorchvideo/layers/distributed.py)

3. pytorchvideo.losses 报错

File "SlowFast/slowfast/models/losses.py", line 11, in
from pytorchvideo.losses.soft_target_cross_entropy import (
ModuleNotFoundError: No module named 'pytorchvideo.losses'

错误2，3可以通过查看参考链接一来解决

4.slowfast 预测

第一种：使用官方的脚本进行推理

python tools/run_net.py --cfg demo/AVA/SLOWFAST_32x2_R101_50_50.yaml

第二种：由于 detectron2安装问题，以及之后部署一系列的问题，可以使用 yolov5加上 slowfast进行推理

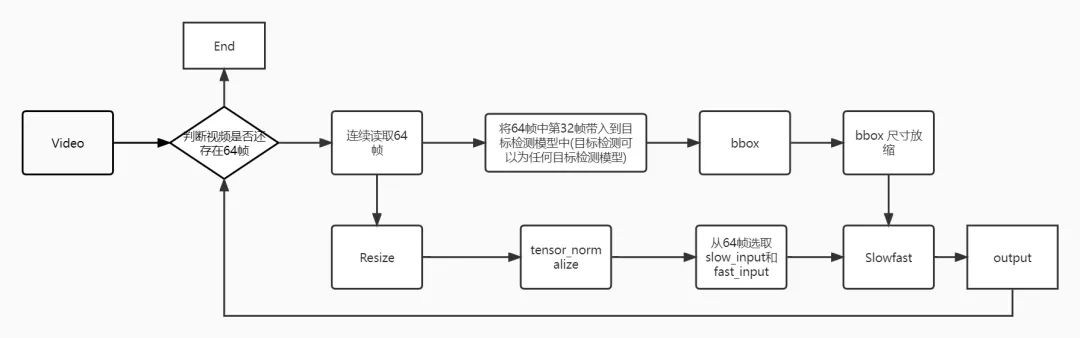

首先，先来了解 slowfast的推理过程

Step1：连续读取64帧并且判断是否满足64帧

while was_read:
    frames=[]
    seq_length=64
    while was_read and len(frames) < seq_length:
        was_read, frame =cap.read()
        frames.append(frame)

Step2: 使用yolov5进行目标检测

1. yolov5 推理代码，将 sys.path.insert路径和权重路径 weights进行更改

import argparse
import os
import platform
import shutil
import time
from pathlib import Path
import sys
import json
sys.path.insert(1, '/content/drive/MyDrive/yolov5/')
import cv2
import torch
import torch.backends.cudnn as cudnn
import numpy as np
import argparse
import time
import cv2
import torch
import torch.backends.cudnn as cudnn
from numpy import random
from models.common import DetectMultiBackend
from utils.augmentations import letterbox
from utils.general import check_img_size, non_max_suppression, scale_coords, set_logging
from utils.torch_utils import select_device
# ####### 参数设置
conf_thres = 0.6
iou_thres = 0.5
#######
imgsz = 640
weights = "/content/yolov5l.pt"
device = '0'
stride = 32
names = ["person"]
import os
def init():
    # Initialize
    global imgsz, device, stride
    set_logging()
    device = select_device('0')
    half = device.type != 'cpu'  # half precision only supported on CUDA
    model = DetectMultiBackend(weights, device=device, dnn=False)
    stride, pt, jit, engine = model.stride, model.pt, model.jit, model.engine
    imgsz = check_img_size(imgsz, s=stride)  # check img_size
    model.half()  # to FP16
    model.eval()
    return model

def process_image(model, input_image=None, args=None, **kwargs):
    img0 = input_image
    img = letterbox(img0, new_shape=imgsz, stride=stride, auto=True)[0]
    img = img.transpose((2, 0, 1))[::-1]  # HWC to CHW, BGR to RGB
    img = np.ascontiguousarray(img)

    img = torch.from_numpy(img).to(device)
    img = img.half()
    img /= 255.0  # 0 - 255 to 0.0 - 1.0
    if len(img.shape) == 3:
        img = img[None]
    pred = model(img, augment=False, val=True)[0]
    pred = non_max_suppression(pred, conf_thres, iou_thres, agnostic=False)
    result=[]
    for i, det in enumerate(pred):  # detections per image
        gn = torch.tensor(img0.shape)[[1, 0, 1, 0]]  # normalization gain whwh
        if det is not None and len(det):
            # Rescale boxes from img_size to im0 size
            det[:, :4] = scale_coords(img.shape[2:], det[:, :4], img0.shape).round()
            for *xyxy, conf, cls in det:
                if cls==0:
                    result.append([float(xyxy[0]),float(xyxy[1]),float(xyxy[2]),float(xyxy[3])])
    if len(result)==0:
      return None
    return torch.from_numpy(np.array(result))

2.bbox 预处理

def scale_boxes(size, boxes, height, width):
    """
    Scale the short side of the box to size.
    Args:
        size (int): size to scale the image.
        boxes (ndarray): bounding boxes to peform scale. The dimension is
        `num boxes` x 4.
        height (int): the height of the image.
        width (int): the width of the image.
    Returns:
        boxes (ndarray): scaled bounding boxes.
    """
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return boxes

    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
        boxes *= float(new_height) / height
    else:
        new_width = int(math.floor((float(width) / height) * size))
        boxes *= float(new_width) / width
    return boxes

Step3: 图像预处理

1.Resize 图像尺寸

def scale(size, image):
    """
    Scale the short side of the image to size.
    Args:
        size (int): size to scale the image.
        image (array): image to perform short side scale. Dimension is
            `height` x `width` x `channel`.
    Returns:
        (ndarray): the scaled image with dimension of
            `height` x `width` x `channel`.
    """
    height = image.shape[0]
    width = image.shape[1]
    # print(height,width)
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return image
    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
    else:
        new_width = int(math.floor((float(width) / height) * size))
    img = cv2.resize(
        image, (new_width, new_height), interpolation=cv2.INTER_LINEAR
    )
    # print(new_width, new_height)
    return img.astype(np.float32)

2.归一化

def tensor_normalize(tensor, mean, std, func=None):
    """
    Normalize a given tensor by subtracting the mean and dividing the std.
    Args:
        tensor (tensor): tensor to normalize.
        mean (tensor or list): mean value to subtract.
        std (tensor or list): std to divide.
    """
    if tensor.dtype == torch.uint8:
        tensor = tensor.float()
        tensor = tensor / 255.0
    if type(mean) == list:
        mean = torch.tensor(mean)
    if type(std) == list:
        std = torch.tensor(std)
    if func is not None:
        tensor = func(tensor)
    tensor = tensor - mean
    tensor = tensor / std
    return tensor

3.构建slow以及fast 输入数据

主要思路为从64帧图像数据中选取32帧作为 fast的输入，再从 fast中选取8帧作为 slow的输入，并将 T H W C -> C T H W.因此最后 fast_pathway维度为 (b,3,32,h,w) slow_pathway的维度为 (b,3,8,h,w)

def process_cv2_inputs(frames):
    """
    Normalize and prepare inputs as a list of tensors. Each tensor
    correspond to a unique pathway.
    Args:
        frames (list of array): list of input images (correspond to one clip) in range [0, 255].
        cfg (CfgNode): configs. Details can be found in
            slowfast/config/defaults.py
    """
    inputs = torch.from_numpy(np.array(frames)).float() / 255
    inputs = tensor_normalize(inputs, [0.45,0.45,0.45], [0.225,0.225,0.225])
    # T H W C -> C T H W.
    inputs = inputs.permute(3, 0, 1, 2)
    # Sample frames for num_frames specified.
    index = torch.linspace(0, inputs.shape[1] - 1, 32).long()
    print(index)
    inputs = torch.index_select(inputs, 1, index)
    fast_pathway = inputs
    slow_pathway = torch.index_select(
            inputs,
            1,
            torch.linspace(
                0, inputs.shape[1] - 1, inputs.shape[1] // 4
            ).long(),
        )
    frame_list = [slow_pathway, fast_pathway]
    print(np.shape(frame_list[0]))
    inputs = [inp.unsqueeze(0) for inp in frame_list]
    return inputs

5.slowfast onnx 推理

5.1 导出onnx文件

import os
import sys
from collections import OrderedDict
import torch
import argparse
work_root = os.path.split(os.path.realpath(__file__))[0]
from slowfast.config.defaults import get_cfg
import slowfast.utils.checkpoint as cu
from slowfast.models import build_model


def parser_args():
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "--cfg",
        dest="cfg_file",
        type=str,
        default=os.path.join(
            work_root, "/content/drive/MyDrive/SlowFast/demo/AVA/SLOWFAST_32x2_R101_50_50.yaml"),
        help="Path to the config file",
    )
    parser.add_argument(
        '--half',
        type=bool,
        default=False,
        help='use half mode',
    )
    parser.add_argument(
        '--checkpoint',
        type=str,
        default=os.path.join(work_root,
                             "/content/SLOWFAST_32x2_R101_50_50.pkl"),
        help='test model file path',
    )
    parser.add_argument(
        '--save',
        type=str,
        default=os.path.join(work_root, "/content/SLOWFAST_head.onnx"),
        help='save model file path',
    )
    return parser.parse_args()


def main():
    args = parser_args()
    print(args)
    cfg_file = args.cfg_file
    checkpoint_file = args.checkpoint
    save_checkpoint_file = args.save
    half_flag = args.half
    cfg = get_cfg()
    cfg.merge_from_file(cfg_file)
    cfg.TEST.CHECKPOINT_FILE_PATH = checkpoint_file
    print(cfg.DATA)
    print("export pytorch model to onnx!\n")
    device = "cuda:0"
    with torch.no_grad():
        model = build_model(cfg)
        model = model.to(device)
        model.eval()
        cu.load_test_checkpoint(cfg, model)
        if half_flag:
            model.half()
        fast_pathway= torch.randn(1, 3, 32, 256, 455)
        slow_pathway= torch.randn(1, 3, 8, 256, 455)
        bbox=torch.randn(32,5).to(device)
        fast_pathway = fast_pathway.to(device)
        slow_pathway = slow_pathway.to(device)
        inputs = [slow_pathway, fast_pathway]
        for p in model.parameters():
         p.requires_grad = False
        torch.onnx.export(model, (inputs,bbox), save_checkpoint_file, input_names=['slow_pathway','fast_pathway','bbox'],output_names=['output'], opset_version=12)
        onnx_check()


def onnx_check():
    import onnx
    args = parser_args()
    print(args)
    onnx_model_path = args.save
    model = onnx.load(onnx_model_path)
    onnx.checker.check_model(model)


if __name__ == '__main__':
    main()

5.2 onnx 推理

import torch
import math
import onnxruntime
from torchvision.ops import roi_align
import argparse
import os
import platform
import shutil
import time
from pathlib import Path
import sys
import json
sys.path.insert(1, '/content/drive/MyDrive/yolov5/')
import cv2
import torch
import torch.backends.cudnn as cudnn
import numpy as np
import argparse
import time
import cv2
import torch
import torch.backends.cudnn as cudnn
from numpy import random
from models.common import DetectMultiBackend
from utils.augmentations import letterbox
from utils.general import check_img_size, non_max_suppression, scale_coords, set_logging
from utils.torch_utils import select_device
# ####### 参数设置
conf_thres = 0.6
iou_thres = 0.5
#######
imgsz = 640
weights = "/content/yolov5l.pt"
device = '0'
stride = 32
names = ["person"]
import os
def init():
    # Initialize
    global imgsz, device, stride
    set_logging()
    device = select_device('0')
    half = device.type != 'cpu'  # half precision only supported on CUDA
    model = DetectMultiBackend(weights, device=device, dnn=False)
    stride, pt, jit, engine = model.stride, model.pt, model.jit, model.engine
    imgsz = check_img_size(imgsz, s=stride)  # check img_size
    model.half()  # to FP16
    model.eval()
    return model

def process_image(model, input_image=None, args=None, **kwargs):
    img0 = input_image
    img = letterbox(img0, new_shape=imgsz, stride=stride, auto=True)[0]
    img = img.transpose((2, 0, 1))[::-1]  # HWC to CHW, BGR to RGB
    img = np.ascontiguousarray(img)

    img = torch.from_numpy(img).to(device)
    img = img.half()
    img /= 255.0  # 0 - 255 to 0.0 - 1.0
    if len(img.shape) == 3:
        img = img[None]
    pred = model(img, augment=False, val=True)[0]
    pred = non_max_suppression(pred, conf_thres, iou_thres, agnostic=False)
    result=[]
    for i, det in enumerate(pred):  # detections per image
        gn = torch.tensor(img0.shape)[[1, 0, 1, 0]]  # normalization gain whwh
        if det is not None and len(det):
            # Rescale boxes from img_size to im0 size
            det[:, :4] = scale_coords(img.shape[2:], det[:, :4], img0.shape).round()
            for *xyxy, conf, cls in det:
                if cls==0:
                    result.append([float(xyxy[0]),float(xyxy[1]),float(xyxy[2]),float(xyxy[3])])
    if len(result)==0:
      return None
    for i in range(32-len(result)):
      result.append([float(0),float(0),float(0),float(0)])
    return torch.from_numpy(np.array(result))
def scale(size, image):
    """
    Scale the short side of the image to size.
    Args:
        size (int): size to scale the image.
        image (array): image to perform short side scale. Dimension is
            `height` x `width` x `channel`.
    Returns:
        (ndarray): the scaled image with dimension of
            `height` x `width` x `channel`.
    """
    height = image.shape[0]
    width = image.shape[1]
    # print(height,width)
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return image
    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
    else:
        new_width = int(math.floor((float(width) / height) * size))
    img = cv2.resize(
        image, (new_width, new_height), interpolation=cv2.INTER_LINEAR
    )
    # print(new_width, new_height)
    return img.astype(np.float32)
def tensor_normalize(tensor, mean, std, func=None):
    """
    Normalize a given tensor by subtracting the mean and dividing the std.
    Args:
        tensor (tensor): tensor to normalize.
        mean (tensor or list): mean value to subtract.
        std (tensor or list): std to divide.
    """
    if tensor.dtype == torch.uint8:
        tensor = tensor.float()
        tensor = tensor / 255.0
    if type(mean) == list:
        mean = torch.tensor(mean)
    if type(std) == list:
        std = torch.tensor(std)
    if func is not None:
        tensor = func(tensor)
    tensor = tensor - mean
    tensor = tensor / std
    return tensor
def scale_boxes(size, boxes, height, width):
    """
    Scale the short side of the box to size.
    Args:
        size (int): size to scale the image.
        boxes (ndarray): bounding boxes to peform scale. The dimension is
        `num boxes` x 4.
        height (int): the height of the image.
        width (int): the width of the image.
    Returns:
        boxes (ndarray): scaled bounding boxes.
    """
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return boxes

    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
        boxes *= float(new_height) / height
    else:
        new_width = int(math.floor((float(width) / height) * size))
        boxes *= float(new_width) / width
    return boxes
def process_cv2_inputs(frames):
    """
    Normalize and prepare inputs as a list of tensors. Each tensor
    correspond to a unique pathway.
    Args:
        frames (list of array): list of input images (correspond to one clip) in range [0, 255].
        cfg (CfgNode): configs. Details can be found in
            slowfast/config/defaults.py
    """
    inputs = torch.from_numpy(np.array(frames)).float() / 255
    inputs = tensor_normalize(inputs, [0.45,0.45,0.45], [0.225,0.225,0.225])
    # T H W C -> C T H W.
    inputs = inputs.permute(3, 0, 1, 2)
    # Sample frames for num_frames specified.
    index = torch.linspace(0, inputs.shape[1] - 1, 32).long()
    print(index)
    inputs = torch.index_select(inputs, 1, index)
    fast_pathway = inputs
    slow_pathway = torch.index_select(
            inputs,
            1,
            torch.linspace(
                0, inputs.shape[1] - 1, inputs.shape[1] // 4
            ).long(),
        )
    frame_list = [slow_pathway, fast_pathway]
    print(np.shape(frame_list[0]))
    inputs = [inp.unsqueeze(0) for inp in frame_list]
    return inputs
#加载模型
yolov5=init()
slowfast = onnxruntime.InferenceSession('/content/SLOWFAST_32x2_R101_50_50.onnx')
#加载数据开始推理
cap = cv2.VideoCapture("/content/atm_125.mp4")
was_read=True
while was_read:
    frames=[]
    seq_length=64
    while was_read and len(frames) < seq_length:
        was_read, frame =cap.read()
        frames.append(frame)

    bboxes = process_image(yolov5,frames[64//2])
    if bboxes is not None:
      frames = [cv2.cvtColor(frame, cv2.COLOR_BGR2RGB) for frame in frames]
      frames = [scale(256, frame) for frame in frames]
      inputs = process_cv2_inputs(frames)
      if bboxes is not None:
          bboxes = scale_boxes(256,bboxes,1080,1920)
          index_pad = torch.full(
              size=(bboxes.shape[0], 1),
              fill_value=float(0),
              device=bboxes.device,
          )
          # Pad frame index for each box.
          bboxes = torch.cat([index_pad, bboxes], axis=1)
      for i in range(len(inputs)):
        inputs[i] = inputs[i].numpy()
      if bboxes is not None:
          outputs = slowfast.run(None, {'slow_pathway': inputs[0],'fast_pathway':inputs[1],'bbox':bboxes})
          for i in range(80):
            if outputs[0][0][i]>0.3:
              print(i)
          print(np.shape(prd))
    else:
        print("没有检测到任何人物")

6 slowfast python Tensorrt 推理

6.1 导出Tensorrt

接下来，为本文的创新点

一开始，本文尝试使用直接将 onnx导出为 Tensorrt，导出失败，查找原因是因为 roi_align在 Tensorrt中还未实现（ roi_align 将在下个版本的 Tensorrt中实现）。

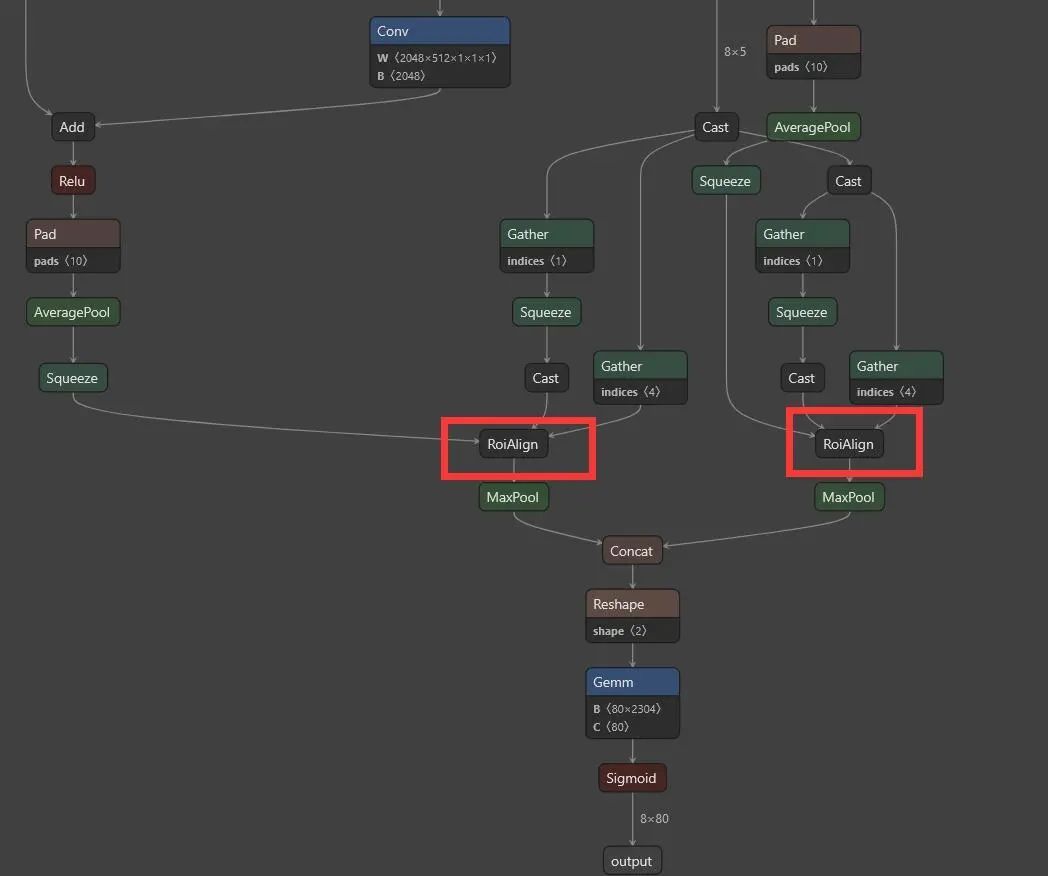

查看导出的 onnx图，会发现 roi_align只在 head部分用到。

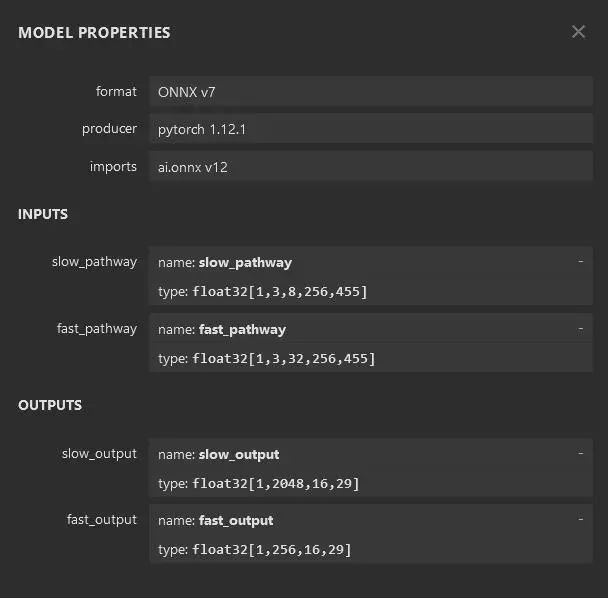

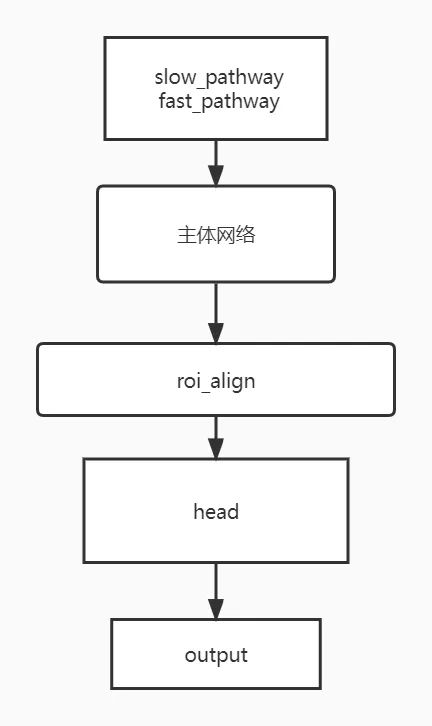

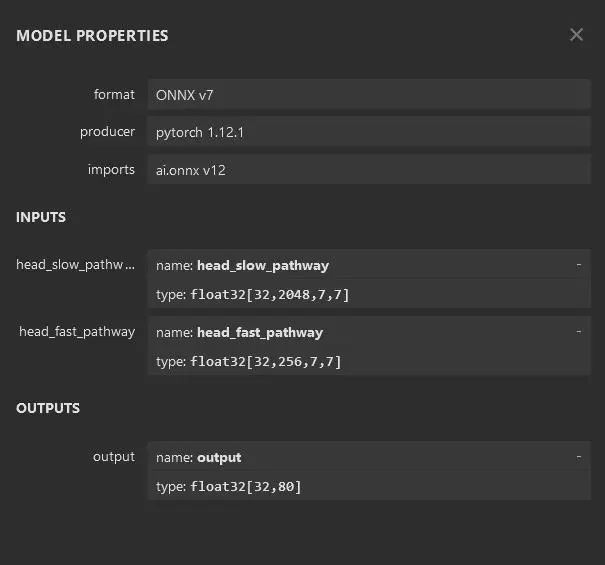

于是我们提出以下思路，如下图所示，将 roi_ailgn模块单独划分出来，不经过 Tensorrt加速，将 slowfast分成为两个网络，其中主体网络用于提取特征， head网络部分负责进行动作分类.。

6.2 Tensorrt推理代码

import ctypes
import os
import numpy as np
import cv2
import random
import tensorrt as trt
import pycuda.autoinit
import pycuda.driver as cuda
import threading
import time


class TrtInference():
    _batch_size = 1
    def __init__(self, model_path=None, cuda_ctx=None):
        self._model_path = model_path
        if self._model_path is None:
            print("please set trt model path!")
            exit()
        self.cuda_ctx = cuda_ctx
        if self.cuda_ctx is None:
            self.cuda_ctx = cuda.Device(0).make_context()
        if self.cuda_ctx:
            self.cuda_ctx.push()
        self.trt_logger = trt.Logger(trt.Logger.INFO)
        self._load_plugins()
        self.engine = self._load_engine()
        try:
            self.context = self.engine.create_execution_context()
            self.stream = cuda.Stream()
            for index, binding in enumerate(self.engine):
                if self.engine.binding_is_input(binding):
                    batch_shape = list(self.engine.get_binding_shape(binding)).copy()
                    batch_shape[0] = self._batch_size
                    self.context.set_binding_shape(index, batch_shape)
            self.host_inputs, self.host_outputs, self.cuda_inputs, self.cuda_outputs, self.bindings = self._allocate_buffers()
        except Exception as e:
            raise RuntimeError('fail to allocate CUDA resources') from e
        finally:
            if self.cuda_ctx:
                self.cuda_ctx.pop()

    def _load_plugins(self):
        pass

    def _load_engine(self):
        with open(self._model_path, 'rb') as f, trt.Runtime(self.trt_logger) as runtime:
            return runtime.deserialize_cuda_engine(f.read())

    def _allocate_buffers(self):
        host_inputs, host_outputs, cuda_inputs, cuda_outputs, bindings = \
            [], [], [], [], []
        for index, binding in enumerate(self.engine):
            size = trt.volume(self.context.get_binding_shape(index)) * \
                   self.engine.max_batch_size
            host_mem = cuda.pagelocked_empty(size, np.float32)
            cuda_mem = cuda.mem_alloc(host_mem.nbytes)
            bindings.append(int(cuda_mem))
            if self.engine.binding_is_input(binding):
                host_inputs.append(host_mem)
                cuda_inputs.append(cuda_mem)
            else:
                host_outputs.append(host_mem)
                cuda_outputs.append(cuda_mem)
        return host_inputs, host_outputs, cuda_inputs, cuda_outputs, bindings

    def destroy(self):
        """Free CUDA memories and context."""
        del self.cuda_outputs
        del self.cuda_inputs
        del self.stream
        if self.cuda_ctx:
            self.cuda_ctx.pop()
            del self.cuda_ctx

    def inference(self, inputs):
        np.copyto(self.host_inputs[0], inputs[0].ravel())
        np.copyto(self.host_inputs[1], inputs[1].ravel())
        if self.cuda_ctx:
            self.cuda_ctx.push()
        cuda.memcpy_htod_async(
            self.cuda_inputs[0], self.host_inputs[0], self.stream)
        cuda.memcpy_htod_async(
            self.cuda_inputs[1], self.host_inputs[1], self.stream)
        self.context.execute_async(
            batch_size=1,
            bindings=self.bindings,
            stream_handle=self.stream.handle)
        cuda.memcpy_dtoh_async(
            self.host_outputs[0], self.cuda_outputs[0], self.stream)
        cuda.memcpy_dtoh_async(
            self.host_outputs[1], self.cuda_outputs[1], self.stream)
        self.stream.synchronize()
        if self.cuda_ctx:
            self.cuda_ctx.pop()
        output = [self.host_outputs[0],self.host_outputs[1]]
        return output


class TrtInference_head():
    _batch_size = 1
    def __init__(self, model_path=None, cuda_ctx=None):
        self._model_path = model_path
        if self._model_path is None:
            print("please set trt model path!")
            exit()
        self.cuda_ctx = cuda_ctx
        if self.cuda_ctx is None:
            self.cuda_ctx = cuda.Device(0).make_context()
        if self.cuda_ctx:
            self.cuda_ctx.push()
        self.trt_logger = trt.Logger(trt.Logger.INFO)
        self._load_plugins()
        self.engine = self._load_engine()
        try:
            self.context = self.engine.create_execution_context()
            self.stream = cuda.Stream()
            for index, binding in enumerate(self.engine):
                if self.engine.binding_is_input(binding):
                    batch_shape = list(self.engine.get_binding_shape(binding)).copy()
                    batch_shape[0] = self._batch_size
                    self.context.set_binding_shape(index, batch_shape)
            self.host_inputs, self.host_outputs, self.cuda_inputs, self.cuda_outputs, self.bindings = self._allocate_buffers()
        except Exception as e:
            raise RuntimeError('fail to allocate CUDA resources') from e
        finally:
            if self.cuda_ctx:
                self.cuda_ctx.pop()

    def _load_plugins(self):
        pass

    def _load_engine(self):
        with open(self._model_path, 'rb') as f, trt.Runtime(self.trt_logger) as runtime:
            return runtime.deserialize_cuda_engine(f.read())

    def _allocate_buffers(self):
        host_inputs, host_outputs, cuda_inputs, cuda_outputs, bindings = \
            [], [], [], [], []
        for index, binding in enumerate(self.engine):
            size = trt.volume(self.context.get_binding_shape(index)) * \
                   self.engine.max_batch_size
            host_mem = cuda.pagelocked_empty(size, np.float32)
            cuda_mem = cuda.mem_alloc(host_mem.nbytes)
            bindings.append(int(cuda_mem))
            if self.engine.binding_is_input(binding):
                host_inputs.append(host_mem)
                cuda_inputs.append(cuda_mem)
            else:
                host_outputs.append(host_mem)
                cuda_outputs.append(cuda_mem)
        return host_inputs, host_outputs, cuda_inputs, cuda_outputs, bindings

    def destroy(self):
        """Free CUDA memories and context."""
        del self.cuda_outputs
        del self.cuda_inputs
        del self.stream
        if self.cuda_ctx:
            self.cuda_ctx.pop()
            del self.cuda_ctx

    def inference(self, inputs):
        np.copyto(self.host_inputs[0], inputs[0].ravel())
        np.copyto(self.host_inputs[1], inputs[1].ravel())
        if self.cuda_ctx:
            self.cuda_ctx.push()
        cuda.memcpy_htod_async(
            self.cuda_inputs[0], self.host_inputs[0], self.stream)
        cuda.memcpy_htod_async(
            self.cuda_inputs[1], self.host_inputs[1], self.stream)
        self.context.execute_async(
            batch_size=1,
            bindings=self.bindings,
            stream_handle=self.stream.handle)
        cuda.memcpy_dtoh_async(
            self.host_outputs[0], self.cuda_outputs[0], self.stream)
        self.stream.synchronize()
        if self.cuda_ctx:
            self.cuda_ctx.pop()
        output = self.host_outputs[0]
        return output

import torch
import math
from torchvision.ops import roi_align
import argparse
import os
import platform
import shutil
import time
from pathlib import Path
import sys
import json
sys.path.insert(1, '/content/drive/MyDrive/yolov5/')
import cv2
import torch
import torch.backends.cudnn as cudnn
import numpy as np
import argparse
import time
import cv2
import torch
import torch.backends.cudnn as cudnn
from numpy import random
from models.common import DetectMultiBackend
from utils.augmentations import letterbox
from utils.general import check_img_size, non_max_suppression, scale_coords, set_logging
from utils.torch_utils import select_device
# ####### 参数设置
conf_thres = 0.89
iou_thres = 0.5
#######
imgsz = 640
weights = "/content/yolov5l.pt"
device = '0'
stride = 32
names = ["person"]
import os
def init():
    # Initialize
    global imgsz, device, stride
    set_logging()
    device = select_device('0')
    half = device.type != 'cpu'  # half precision only supported on CUDA
    model = DetectMultiBackend(weights, device=device, dnn=False)
    stride, pt, jit, engine = model.stride, model.pt, model.jit, model.engine
    imgsz = check_img_size(imgsz, s=stride)  # check img_size
    model.half()  # to FP16
    model.eval()
    return model

def process_image(model, input_image=None, args=None, **kwargs):
    img0 = input_image
    img = letterbox(img0, new_shape=imgsz, stride=stride, auto=True)[0]
    img = img.transpose((2, 0, 1))[::-1]  # HWC to CHW, BGR to RGB
    img = np.ascontiguousarray(img)

    img = torch.from_numpy(img).to(device)
    img = img.half()
    img /= 255.0  # 0 - 255 to 0.0 - 1.0
    if len(img.shape) == 3:
        img = img[None]
    pred = model(img, augment=False, val=True)[0]
    pred = non_max_suppression(pred, conf_thres, iou_thres, agnostic=False)
    result=[]
    for i, det in enumerate(pred):  # detections per image
        gn = torch.tensor(img0.shape)[[1, 0, 1, 0]]  # normalization gain whwh
        if det is not None and len(det):
            # Rescale boxes from img_size to im0 size
            det[:, :4] = scale_coords(img.shape[2:], det[:, :4], img0.shape).round()
            for *xyxy, conf, cls in det:
                if cls==0:
                    result.append([float(xyxy[0]),float(xyxy[1]),float(xyxy[2]),float(xyxy[3])])
    if len(result)==0:
      return None
    for i in range(32-len(result)):
      result.append([float(0),float(0),float(0),float(0)])
    return torch.from_numpy(np.array(result))
def scale(size, image):
    """
    Scale the short side of the image to size.
    Args:
        size (int): size to scale the image.
        image (array): image to perform short side scale. Dimension is
            `height` x `width` x `channel`.
    Returns:
        (ndarray): the scaled image with dimension of
            `height` x `width` x `channel`.
    """
    height = image.shape[0]
    width = image.shape[1]
    # print(height,width)
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return image
    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
    else:
        new_width = int(math.floor((float(width) / height) * size))
    img = cv2.resize(
        image, (new_width, new_height), interpolation=cv2.INTER_LINEAR
    )
    # print(new_width, new_height)
    return img.astype(np.float32)
def tensor_normalize(tensor, mean, std, func=None):
    """
    Normalize a given tensor by subtracting the mean and dividing the std.
    Args:
        tensor (tensor): tensor to normalize.
        mean (tensor or list): mean value to subtract.
        std (tensor or list): std to divide.
    """
    if tensor.dtype == torch.uint8:
        tensor = tensor.float()
        tensor = tensor / 255.0
    if type(mean) == list:
        mean = torch.tensor(mean)
    if type(std) == list:
        std = torch.tensor(std)
    if func is not None:
        tensor = func(tensor)
    tensor = tensor - mean
    tensor = tensor / std
    return tensor
def scale_boxes(size, boxes, height, width):
    """
    Scale the short side of the box to size.
    Args:
        size (int): size to scale the image.
        boxes (ndarray): bounding boxes to peform scale. The dimension is
        `num boxes` x 4.
        height (int): the height of the image.
        width (int): the width of the image.
    Returns:
        boxes (ndarray): scaled bounding boxes.
    """
    if (width <= height and width == size) or (
        height <= width and height == size
    ):
        return boxes

    new_width = size
    new_height = size
    if width < height:
        new_height = int(math.floor((float(height) / width) * size))
        boxes *= float(new_height) / height
    else:
        new_width = int(math.floor((float(width) / height) * size))
        boxes *= float(new_width) / width
    return boxes
def process_cv2_inputs(frames):
    """
    Normalize and prepare inputs as a list of tensors. Each tensor
    correspond to a unique pathway.
    Args:
        frames (list of array): list of input images (correspond to one clip) in range [0, 255].
        cfg (CfgNode): configs. Details can be found in
            slowfast/config/defaults.py
    """
    inputs = torch.from_numpy(np.array(frames)).float() / 255
    inputs = tensor_normalize(inputs, [0.45,0.45,0.45], [0.225,0.225,0.225])
    # T H W C -> C T H W.
    inputs = inputs.permute(3, 0, 1, 2)
    # Sample frames for num_frames specified.
    index = torch.linspace(0, inputs.shape[1] - 1, 32).long()
    print(index)
    inputs = torch.index_select(inputs, 1, index)
    fast_pathway = inputs
    slow_pathway = torch.index_select(
            inputs,
            1,
            torch.linspace(
                0, inputs.shape[1] - 1, inputs.shape[1] // 4
            ).long(),
        )
    frame_list = [slow_pathway, fast_pathway]
    print(np.shape(frame_list[0]))
    inputs = [inp.unsqueeze(0) for inp in frame_list]
    return inputs
#加载模型
yolov5=init()
slowfast = TrtInference('/content/SLOWFAST_32x2_R101_50_50.engine',None)
head = TrtInference_head('/content/SLOWFAST_head.engine',None)

#加载数据开始推理
cap = cv2.VideoCapture("/content/atm_125.mp4")
was_read=True
while was_read:
    frames=[]
    seq_length=64
    while was_read and len(frames) < seq_length:
        was_read, frame =cap.read()
        frames.append(frame)

    bboxes = process_image(yolov5,frames[64//2])
    if bboxes is not None:
      frames = [cv2.cvtColor(frame, cv2.COLOR_BGR2RGB) for frame in frames]
      frames = [scale(256, frame) for frame in frames]
      inputs = process_cv2_inputs(frames)
      print(bboxes)
      if bboxes is not None:
          bboxes = scale_boxes(256,bboxes,1080,1920)
          index_pad = torch.full(
              size=(bboxes.shape[0], 1),
              fill_value=float(0),
              device=bboxes.device,
          )
          # Pad frame index for each box.
          bboxes = torch.cat([index_pad, bboxes], axis=1)
      for i in range(len(inputs)):
        inputs[i] = inputs[i].numpy()
      if bboxes is not None:
          outputs=slowfast.inference(inputs)
          outputs[0]=outputs[0].reshape(1,2048,16,29)
          outputs[1]=outputs[1].reshape(1,256,16,29)
          outputs[0]=torch.from_numpy(outputs[0])
          outputs[1]=torch.from_numpy(outputs[1])
          outputs[0]=roi_align(outputs[0],bboxes.to(dtype=outputs[0].dtype),7,1.0/16,0,True)
          outputs[1]=roi_align(outputs[1],bboxes.to(dtype=outputs[1].dtype),7,1.0/16,0,True)
          outputs[0] = outputs[0].numpy()
          outputs[1] = outputs[1].numpy()
          prd=head.inference(outputs)
          prd=prd.reshape(32,80)
          for i in range(80):
            if prd[0][i]>0.3:
              print(i)
    else:
        print("没有检测到任何人物")

通过阅读上述的代码

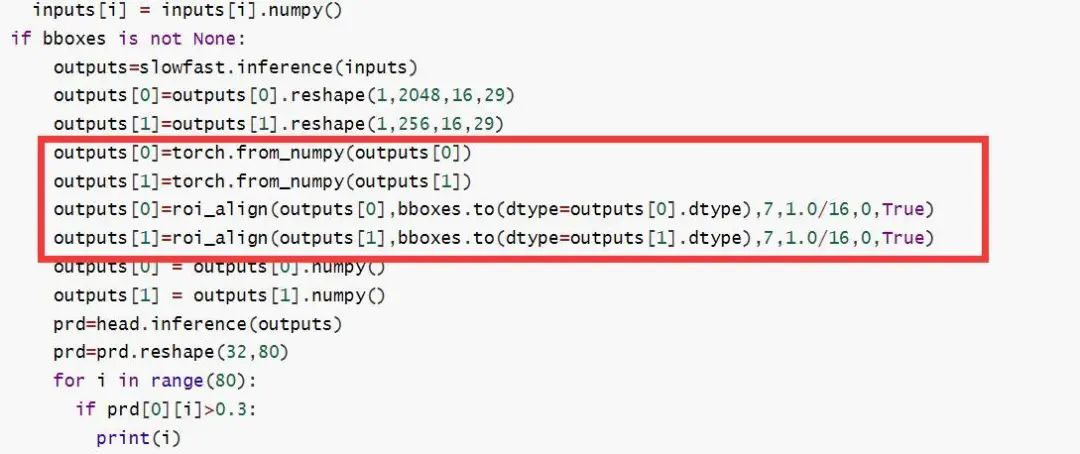

slow_pathway 与 fast_pathway 经过 slowfast主体模型，通过 reshape成 roi_align 需要的维度，将 reshape后的结果， bbox以及相应的参数带入到 roi_align中得到 head模型需要的输入。

7.slowfast C++ tensorrt 部署

7.1 yolov5 C++ 目标检测

yolov5 本文就不介绍了，我直接使用平台自带的 yolov5 tensorrt 代码

https://github.com/ExtremeMart/ev_sdk_demo4.0_pedestrian_intrusion_yolov5

7.2  deepsort C++ 目标追踪

本文参考以下的 deepsort代码

https://github.com/RichardoMrMu/deepsort-tensorrt

由于这部分不是本文的重点，只需要知道怎么使用这部分的代码，写好CmakeLists文件，在代码中可以按照以下的方式使用 deepsort

#include "deepsort.h"
/**
 DeepSortBox 为yolov5识别的结果
 DeepSortBox 结构
 {
  x1,
  y1,
  x2,
  y2,
  score,
  label,
  trackID
 }
 img 为原始的图片
 最终结果存放在DeepSortBox中
*/
DS->sort(img, DeepSortBox);

7.3    slowfast C++ 目标动作识别

运行环境：

Tensorrt8.4

opencv4.1.1

cudnn8.0

cuda11.1

文件准备：

body.onnx

head.onnx

slowfast推理流程图

我们还是按照预测的流程图来实现 Tensorrt推理代码

通过 onnx可视化查看 body.onnx输入以及输出

head.onnx的输入以及输出

Step1：模型加载

将 body.onnx以及 head.onnx 通过 Tensorrt加载，并且开辟 Tensorrt推理运行空间，代码如下

void loadheadOnnx(const std::string strModelName)
{
    Logger gLogger;
    //根据tensorrt pipeline 构建网络
    IBuilder* builder = createInferBuilder(gLogger);
    builder->setMaxBatchSize(1);
    const auto explicitBatch = 1U << static_cast<uint32_t>(NetworkDefinitionCreationFlag::kEXPLICIT_BATCH);
    INetworkDefinition* network = builder->createNetworkV2(explicitBatch);
    nvonnxparser::IParser* parser = nvonnxparser::createParser(*network, gLogger);
    parser->parseFromFile(strModelName.c_str(), static_cast<int>(ILogger::Severity::kWARNING));
    IBuilderConfig* config = builder->createBuilderConfig();
    config->setMaxWorkspaceSize(1ULL << 30);
    m_CudaheadEngine = builder->buildEngineWithConfig(*network, *config);

    std::string strTrtName = strModelName;
    size_t sep_pos = strTrtName.find_last_of(".");
    strTrtName = strTrtName.substr(0, sep_pos) + ".trt";
    IHostMemory *gieModelStream = m_CudaheadEngine->serialize();
    std::string serialize_str;
    std::ofstream serialize_output_stream;
    serialize_str.resize(gieModelStream->size());
    memcpy((void*)serialize_str.data(),gieModelStream->data(),gieModelStream->size());
    serialize_output_stream.open(strTrtName.c_str());
    serialize_output_stream<<serialize_str;
    serialize_output_stream.close();
    m_CudaheadContext = m_CudaheadEngine->createExecutionContext();
    parser->destroy();
    network->destroy();
    config->destroy();
    builder->destroy();
}

Step2: 为输入输出数据开辟空间

body.onnx 输入为 slow_pathway和 fast_pathway的维度为 (B,C,T,H,W)，其中 slow_pathway的T为8，输出为 (B,2048,16,29)， fast_pathway的维度为32，输出为 (B,256,16,29)``,head的输入(32,2048,7,7)与(32,256,7,7)，输出为(32,80),具体代码实现如下：

 slow_pathway_InputIndex = m_CudaslowfastEngine->getBindingIndex(slow_pathway_NAME);
    fast_pathway_InputIndex = m_CudaslowfastEngine->getBindingIndex(fast_pathway_NAME);
    slow_pathway_OutputIndex = m_CudaslowfastEngine->getBindingIndex(slow_pathway_OUTPUT);
    fast_pathway_OutputIndex = m_CudaslowfastEngine->getBindingIndex(fast_pathway_OUTPUT);
    dims_i = m_CudaslowfastEngine->getBindingDimensions(slow_pathway_InputIndex);
    SDKLOG(INFO)<<slow_pathway_InputIndex<<" "<<fast_pathway_InputIndex<<" "<<slow_pathway_OutputIndex<<" "<<fast_pathway_OutputIndex;
    SDKLOG(INFO) << "slow_pathway dims " << dims_i.d[0] << " " << dims_i.d[1] << " " << dims_i.d[2] << " " << dims_i.d[3]<< " " << dims_i.d[4];
    size = dims_i.d[0] * dims_i.d[1] * dims_i.d[2] * dims_i.d[3]* dims_i.d[4];
    cudaMalloc(&slowfast_ArrayDevMemory[slow_pathway_InputIndex], size * sizeof(float));
    slowfast_ArrayHostMemory[slow_pathway_InputIndex] = malloc(size * sizeof(float));
    slowfast_ArraySize[slow_pathway_InputIndex]=size* sizeof(float);

    dims_i = m_CudaslowfastEngine->getBindingDimensions(fast_pathway_InputIndex);
    SDKLOG(INFO) << "fast_pathway dims " << dims_i.d[0] << " " << dims_i.d[1] << " " << dims_i.d[2] << " " << dims_i.d[3]<< " " << dims_i.d[4];
    size = dims_i.d[0] * dims_i.d[1] * dims_i.d[2] * dims_i.d[3]* dims_i.d[4];
    cudaMalloc(&slowfast_ArrayDevMemory[fast_pathway_InputIndex], size * sizeof(float));
    slowfast_ArrayHostMemory[fast_pathway_InputIndex] = malloc(size * sizeof(float));
    slowfast_ArraySize[fast_pathway_InputIndex]=size* sizeof(float);


    dims_i = m_CudaslowfastEngine->getBindingDimensions(slow_pathway_OutputIndex);
    SDKLOG(INFO) << "slow_out dims " << dims_i.d[0] << " " << dims_i.d[1] << " " << dims_i.d[2] << " " << dims_i.d[3];
    size = dims_i.d[0] * dims_i.d[1] * dims_i.d[2] * dims_i.d[3];
    cudaMalloc(&slowfast_ArrayDevMemory[slow_pathway_OutputIndex], size * sizeof(float));
    slowfast_ArrayHostMemory[slow_pathway_OutputIndex] = malloc(size * sizeof(float));
    slowfast_ArraySize[slow_pathway_OutputIndex]=size* sizeof(float);



    dims_i = m_CudaslowfastEngine->getBindingDimensions(fast_pathway_OutputIndex);
    SDKLOG(INFO) << "fast_out dims " << dims_i.d[0] << " " << dims_i.d[1] << " " << dims_i.d[2] << " " << dims_i.d[3];
    size = dims_i.d[0] * dims_i.d[1] * dims_i.d[2] * dims_i.d[3];
    cudaMalloc(&slowfast_ArrayDevMemory[fast_pathway_OutputIndex], size * sizeof(float));
    slowfast_ArrayHostMemory[fast_pathway_OutputIndex] = malloc(size * sizeof(float));
    slowfast_ArraySize[fast_pathway_OutputIndex]=size* sizeof(float);



    size=32*2048*7*7;
    cudaMalloc(&ROIAlign_ArrayDevMemory[0], size * sizeof(float));
    ROIAlign_ArrayHostMemory[0] = malloc(size * sizeof(float));
    ROIAlign_ArraySize[0]=size* sizeof(float);

    size=32*256*7*7;
    cudaMalloc(&ROIAlign_ArrayDevMemory[1], size * sizeof(float));
    ROIAlign_ArrayHostMemory[1] = malloc(size * sizeof(float));
    ROIAlign_ArraySize[1]=size* sizeof(float);


    size=32*80;
    cudaMalloc(&ROIAlign_ArrayDevMemory[2], size * sizeof(float));
    ROIAlign_ArrayHostMemory[2] = malloc(size * sizeof(float));
    ROIAlign_ArraySize[2]=size* sizeof(float);
    size=32*5;
    boxes_data= malloc(size * sizeof(float));
    dims_i = m_CudaheadEngine->getBindingDimensions(0);

Step3：输入数据预处理

首先由于我导出 onnx文件没有使用动态尺寸，导致input 图片大小已经确定了， size=256*455(这个结果是1080*1920等比例放缩)， slowfast模型要求为 RGB，需要将图片从 BGR转换为 RGB，之后进行 resize到256*455，具体代码实现如下

  cv::Mat framesimg = img.clone();
        cv::cvtColor(framesimg, framesimg, cv::COLOR_BGR2RGB);
        int height = framesimg.rows;
        int width = framesimg.cols;
        // 对图像进行预处理
        //cv2.COLOR_BGR2RGB
        int size=256;
        int new_width = width;
        int new_height = height;
        if ((width <= height && width == size) || (height <= width and height == size)){

        }
        else{
            new_width = size;
            new_height = size;
            if(width<height){
                new_height = int((float(height) / width) * size);
            }else{
                new_width = int((float(width) / height) * size);
            }
            cv::resize(framesimg, framesimg, cv::Size{new_width,new_height},cv::INTER_LINEAR);
        }

其次之后对图像进行归一化操作，并且按照 CTHW的顺序进行排列，其中 C为通道， T为图像顺序， H 为图像的长度， W为图像的宽度，由于 slowfast有两个输入，一个输入为 fast_pathway 为32帧的图像，维度为 (b,c,T,h,w),其中 T为32 ，因此需要每两帧添加图像数据到 fast_pathway中，另外一个输入为 slow_pathway为8帧的图像，维度为 (b,c,T,h,w)，其中T为8，因此需要每四帧添加图像数据到 slow_pathway 中，具体代码如下

  float *data=(float *)slowfast_ArrayHostMemory[fast_pathway_InputIndex];
        new_width =  framesimg.cols;
        new_height = framesimg.rows;
        for (size_t c = 0; c < 3; c++)
        {
            for (size_t  h = 0; h < new_height; h++)
            {
                for (size_t w = 0; w < new_width; w++)
                {
                    float v=((float)framesimg.at<cv::Vec3b>(h, w)[c]) / 255.0f;
                    v -= 0.45;
                    v /= 0.225;
                    data[c*32*256*455+fast_index* new_width * new_height + h * new_width + w] =v;
                }
            }
        }
        fast_index++;
        if(frames==0||frames==8||frames==16||frames==26||frames==34||frames==44||frames==52||frames==63){
            data=(float *)slowfast_ArrayHostMemory[slow_pathway_InputIndex];
            for (size_t c = 0; c < 3; c++)
            {
                for (size_t  h = 0; h < new_height; h++)
                {
                    for (size_t w = 0; w < new_width; w++)
                    {
                       float v=((float)framesimg.at<cv::Vec3b>(h, w)[c]) / 255.0f;
                        v -= 0.45;
                        v /= 0.225;
                        data[c*8*256*455+slow_index* new_width * new_height + h * new_width + w] =v;
                    }
                }
            }
            slow_index++;
        }

Step4: roi_align实现

正如上一节所描述一样，roi_align在当前版本中的Tensorrt中并没有实现，而在torchvision.ops中实现了roi_align，python推理代码可以直接调用。而C++代码必须要实现roi_align，具体原理这里不讲解了，可以简单认为roi_align具体过程就是crop和resize的过程，从特征图中提取bbox对应的特征，将提取到的特征resize到7*7。具体代码实现如下

void ROIAlignForwardCpu(const float* bottom_data, const float spatial_scale, const int num_rois,
                     const int height, const int width, const int channels,
                     const int aligned_height, const int aligned_width, const float * bottom_rois,
                     float* top_data)
{
    const int output_size = num_rois * aligned_height * aligned_width * channels;

    int idx = 0;
    for (idx = 0; idx < output_size; ++idx)
    {
        int pw = idx % aligned_width;
        int ph = (idx / aligned_width) % aligned_height;
        int c = (idx / aligned_width / aligned_height) % channels;
        int n = idx / aligned_width / aligned_height / channels;

        float roi_batch_ind = 0;
        float roi_start_w = bottom_rois[n * 5 + 1] * spatial_scale;
        float roi_start_h = bottom_rois[n * 5 + 2] * spatial_scale;
        float roi_end_w = bottom_rois[n * 5 + 3] * spatial_scale;
        float roi_end_h = bottom_rois[n * 5 + 4] * spatial_scale;
        float roi_width = fmaxf(roi_end_w - roi_start_w + 1., 0.);
        float roi_height = fmaxf(roi_end_h - roi_start_h + 1., 0.);
        float bin_size_h = roi_height / (aligned_height - 1.);
        float bin_size_w = roi_width / (aligned_width - 1.);

        float h = (float)(ph) * bin_size_h + roi_start_h;
        float w = (float)(pw) * bin_size_w + roi_start_w;

        int hstart = fminf(floor(h), height - 2);
        int wstart = fminf(floor(w), width - 2);

        int img_start = roi_batch_ind * channels * height * width;
        if (h < 0 || h >= height || w < 0 || w >= width)
        {
            top_data[idx] = 0.;
        }
        else
        {
            float h_ratio = h - (float)(hstart);
            float w_ratio = w - (float)(wstart);
            int upleft = img_start + (c * height + hstart) * width + wstart;

            int upright = upleft + 1;
            int downleft = upleft + width;
            int downright = downleft + 1;

            top_data[idx] = bottom_data[upleft] * (1. - h_ratio) * (1. - w_ratio)
                + bottom_data[upright] * (1. - h_ratio) * w_ratio
                + bottom_data[downleft] * h_ratio * (1. - w_ratio)
                + bottom_data[downright] * h_ratio * w_ratio;
        }
    }
}

Step5：推理

首先将 Step3中准备好的数据使用 body进行推理，将推理结果使用 Step4中的 roi_align函数进行提取 bbox对应的特征，最后将提取的特征使用 head模型进行推理，得到 output。具体代码实现如下

cudaMemcpyAsync(slowfast_ArrayDevMemory[slow_pathway_InputIndex], slowfast_ArrayHostMemory[slow_pathway_InputIndex], slowfast_ArraySize[slow_pathway_InputIndex], cudaMemcpyHostToDevice, m_CudaStream);
    cudaMemcpyAsync(slowfast_ArrayDevMemory[fast_pathway_InputIndex], slowfast_ArrayHostMemory[fast_pathway_InputIndex], slowfast_ArraySize[fast_pathway_InputIndex], cudaMemcpyHostToDevice, m_CudaStream);
    m_CudaslowfastContext->enqueueV2(slowfast_ArrayDevMemory , m_CudaStream, nullptr);
   cudaMemcpyAsync(slowfast_ArrayHostMemory[slow_pathway_OutputIndex], slowfast_ArrayDevMemory[slow_pathway_OutputIndex], slowfast_ArraySize[slow_pathway_OutputIndex], cudaMemcpyDeviceToHost, m_CudaStream);
    cudaMemcpyAsync(slowfast_ArrayHostMemory[fast_pathway_OutputIndex], slowfast_ArrayDevMemory[fast_pathway_OutputIndex], slowfast_ArraySize[fast_pathway_OutputIndex], cudaMemcpyDeviceToHost, m_CudaStream);
    cudaStreamSynchronize(m_CudaStream);
    data=(float*)slowfast_ArrayHostMemory[fast_pathway_OutputIndex];
    ROIAlignForwardCpu((float*)slowfast_ArrayHostMemory[slow_pathway_OutputIndex], 0.0625, 32,16,29, 2048,7, 7, (float*)boxes_data,       (float*)ROIAlign_ArrayHostMemory[0]);
    ROIAlignForwardCpu((float*)slowfast_ArrayHostMemory[fast_pathway_OutputIndex], 0.0625, 32,16,29, 256,7, 7, (float*)boxes_data,       (float*)ROIAlign_ArrayHostMemory[1]);
    data=(float*)ROIAlign_ArrayHostMemory[0];
    cudaMemcpyAsync(ROIAlign_ArrayDevMemory[0], ROIAlign_ArrayHostMemory[0], ROIAlign_ArraySize[0], cudaMemcpyHostToDevice, m_CudaStream);
    cudaMemcpyAsync(ROIAlign_ArrayDevMemory[1], ROIAlign_ArrayHostMemory[1], ROIAlign_ArraySize[1], cudaMemcpyHostToDevice, m_CudaStream);
    m_CudaheadContext->enqueueV2(ROIAlign_ArrayDevMemory, m_CudaStream, nullptr);
    cudaMemcpyAsync(ROIAlign_ArrayHostMemory[2], ROIAlign_ArrayDevMemory[2], ROIAlign_ArraySize[2], cudaMemcpyDeviceToHost, m_CudaStream);
    cudaStreamSynchronize(m_CudaStream);

参考链接

1. https://blog.csdn.net/y459541195/article/details/126278476
2. https://blog.csdn.net/WhiffeYF/article/details/115581800
3. https://github.com/facebookresearch/SlowFast

公众号后台回复“ECCV2022”获取论文资源分类汇总下载～

△点击卡片关注极市平台，获取 最新CV干货

极市干货

算法竞赛：算法offer直通车、50万总奖池！高通人工智能创新应用大赛等你来战！

技术干货：超简单正则表达式入门教程｜22 款神经网络设计和可视化的工具大汇总

极视角动态：芜湖市湾沚区联手极视角打造核酸检测便民服务系统上线！｜青岛市委常委、组织部部长于玉一行莅临极视角调研

“

点击阅读原文进入CV社区

收获更多技术干货
