iOS--音乐播放器之DOUAudioStreamer

好久没有写东西了，最近加班太严重，今天抽空把用到的音乐播放器DOUAudioStreamer整理一下，由于项目之前用的是AVPlayer，这个也可以，但是就是要先缓存一段时间再播放，老板看了之后要求，要变缓存变播放（有网时，点击播放按钮就立刻播放），怎么不早说！怎么不早说！怎么不早说！还能怎样？只能原谅他，继续敲代码。。。。。。（还是直接上代码吧）

一、导入三方库

pod 'DOUAudioStreamer'

或者GitHup下载地址：https://github.com/douban/DOUAudioStreamer

二、使用

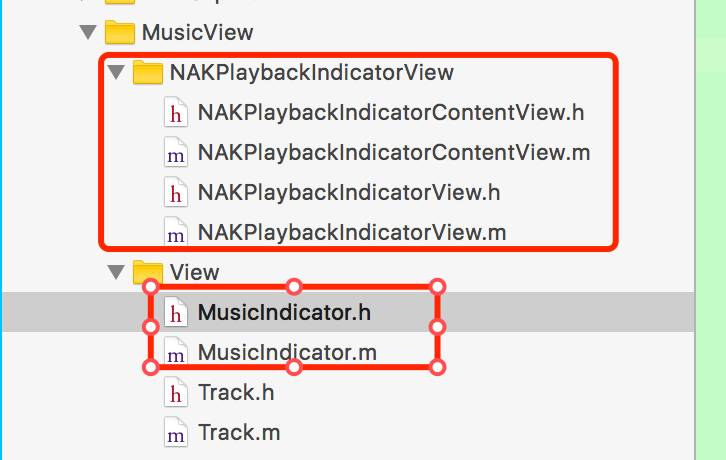

1.从demo中获取NAKPlaybackIndicatorView文件和MusicIndicator.h和MusicIndicator.m 文件，并导入头文件

//音乐播放

#import "DOUAudioStreamer.h"

#import "NAKPlaybackIndicatorView.h"

#import "MusicIndicator.h"

#import "Track.h"

如图：

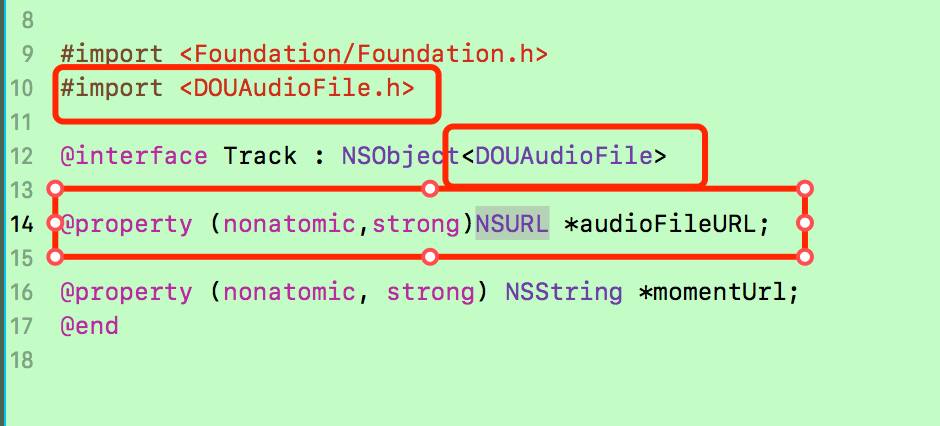

2.创建一个Track类，用于音乐播放的URL存放

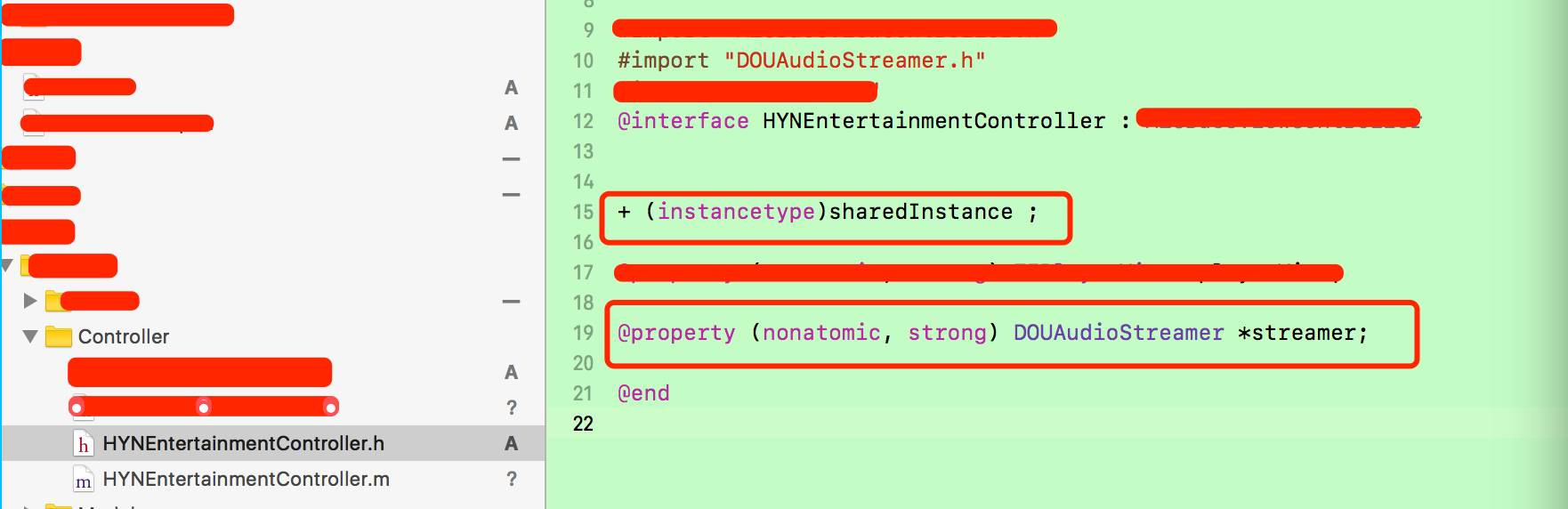

3.需要的界面.h中，添加DOUAudioStreamer，并用单利来初始化

+ (instancetype)sharedInstance ;

@property (nonatomic, strong) DOUAudioStreamer *streamer;

如图：

在.m中实现：

static void *kStatusKVOKey = &kStatusKVOKey;

static void *kDurationKVOKey = &kDurationKVOKey;

static void *kBufferingRatioKVOKey = &kBufferingRatioKVOKey;

@property (strong, nonatomic) MusicIndicator *musicIndicator;

@property (nonatomic, strong) Track *audioTrack;

+ (instancetype)sharedInstance {



    static HYNEntertainmentController *_sharedMusicVC = nil;

    static dispatch_once_t onceToken;

    dispatch_once(&onceToken, ^{



        _sharedMusicVC = [[HYNEntertainmentController alloc] init];

        _sharedMusicVC.streamer = [[DOUAudioStreamer alloc] init];



    });



    return _sharedMusicVC;

}

播放按钮事件

#pragma mark ---音乐播放按钮

-(void)playMusicStart:(UIButton *)sender

{



     //通过按钮获取cell

     MusicCollectionViewCell *musicCell = (MusicCollectionViewCell *)[[sender superview] superview];

    if(_playFirst == 0){//_playFirst == 0首次播放，其他为暂停



        NSURL *url = [NSURL URLWithString:HttpImgUrl(musicCell.model.musicUrl)];



        _audioTrack.audioFileURL = url;





        @try {

            [self removeStreamerObserver];



        } @catch(id anException){



        }

        //在DOUAudioStreamer进行播放时，必须先置为nil

        _streamer = nil;



        _streamer = [DOUAudioStreamer streamerWithAudioFile:_audioTrack];





        [self addStreamerObserver];



        [_streamer play];



    }



    if([_streamer status] == DOUAudioStreamerPaused ||

       [_streamer status] == DOUAudioStreamerIdle){



        [sender setBackgroundImage:[UIImage imageNamed:@"music_play_icon"] forState:UIControlStateNormal];



        [_streamer play];







    }else{



        [sender setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];



        [_streamer pause];





    }



    _playFirst++;



}

对DOUAudioStreamer添加监听

- (void)addStreamerObserver {



    [_streamer addObserver:self forKeyPath:@"status" options:NSKeyValueObservingOptionNew context:kStatusKVOKey];

    [_streamer addObserver:self forKeyPath:@"duration" options:NSKeyValueObservingOptionNew context:kDurationKVOKey];

    [_streamer addObserver:self forKeyPath:@"bufferingRatio" options:NSKeyValueObservingOptionNew context:kBufferingRatioKVOKey];



}

/// 播放器销毁

- (void)dealloc{



    if (_streamer !=nil) {





        [_streamer pause];

        [_streamer removeObserver:self forKeyPath:@"status" context:kStatusKVOKey];

        [_streamer removeObserver:self forKeyPath:@"duration" context:kDurationKVOKey];

        [_streamer removeObserver:self forKeyPath:@"bufferingRatio" context:kBufferingRatioKVOKey];



        _streamer =nil;

    }





}

- (void)removeStreamerObserver {



    [_streamer removeObserver:self forKeyPath:@"status"];

    [_streamer removeObserver:self forKeyPath:@"duration"];

    [_streamer removeObserver:self forKeyPath:@"bufferingRatio"];

}

- (void)observeValueForKeyPath:(NSString *)keyPath ofObject:(id)object change:(NSDictionary *)change context:(void *)context {

    if (context == kStatusKVOKey) {

        [self performSelector:@selector(updateStatus)

                     onThread:[NSThread mainThread]

                   withObject:nil

                waitUntilDone:NO];

    } else if (context == kDurationKVOKey) {

        [self performSelector:@selector(updateSliderValue:)

                     onThread:[NSThread mainThread]

                   withObject:nil

                waitUntilDone:NO];

    } else if (context == kBufferingRatioKVOKey) {

        [self performSelector:@selector(updateBufferingStatus)

                     onThread:[NSThread mainThread]

                   withObject:nil

                waitUntilDone:NO];

    } else {

        [super observeValueForKeyPath:keyPath ofObject:object change:change context:context];

    }

}

- (void)updateSliderValue:(id)timer {





}

-(void)updateBufferingStatus

{





}

- (void)updateStatus {

    //self.musicIsPlaying = NO;

    _musicIndicator.state = NAKPlaybackIndicatorViewStateStopped;

    switch ([_streamer status]) {

        case DOUAudioStreamerPlaying:

            // self.musicIsPlaying = YES;

            _musicIndicator.state = NAKPlaybackIndicatorViewStatePlaying;

            break;



        case DOUAudioStreamerPaused:

            break;



        case DOUAudioStreamerIdle:

            break;



        case DOUAudioStreamerFinished:



            break;



        case DOUAudioStreamerBuffering:

            _musicIndicator.state = NAKPlaybackIndicatorViewStatePlaying;

            break;



        case DOUAudioStreamerError:

            break;

    }



}

这样就能播放了。

三、锁屏时的音乐显示、拔出耳机后暂停播放、监听音频打断事件

-(void)viewWillAppear:(BOOL)animated

{



    [super viewWillAppear:animated];

//    接受远程控制

    [self becomeFirstResponder];

    [[UIApplication sharedApplication] beginReceivingRemoteControlEvents];

}

//这个不能忘记了

-(BOOL)canBecomeFirstResponder{

    return YES;

}

- (void)viewDidLoad {

    [super viewDidLoad];

//音乐播放器

    [self initPlayer];

}

#pragma mark =========================音乐播放==============================

//音乐播放器

-(void)initPlayer

{

    _audioTrack = [[Track alloc] init];

    AVAudioSession *session = [AVAudioSession sharedInstance];

    [session setActive:YES error:nil];

    [session setCategory:AVAudioSessionCategoryPlayback error:nil];

    //让app支持接受远程控制事件

    [[UIApplication sharedApplication] beginReceivingRemoteControlEvents];



    //添加通知，拔出耳机后暂停播放

    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(routeChange:) name:AVAudioSessionRouteChangeNotification object:nil];

    // 监听音频打断事件

    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(audioSessionWasInterrupted:) name:AVAudioSessionInterruptionNotification object:session];







}

// 监听音频打断事件

- (void)audioSessionWasInterrupted:(NSNotification *)notification

{

   //被打断时

    if (AVAudioSessionInterruptionTypeBegan == [notification.userInfo[AVAudioSessionInterruptionTypeKey] intValue])

    {



        [_streamer pause];



        UIButton *btn = (UIButton *)[self.view viewWithTag:2000];



        [btn setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];



    }

    else if (AVAudioSessionInterruptionTypeEnded == [notification.userInfo[AVAudioSessionInterruptionTypeKey] intValue])

    {



    }

}

// 拔出耳机后暂停播放

-(void)routeChange:(NSNotification *)notification{







    NSDictionary *dic=notification.userInfo;

    int changeReason= [dic[AVAudioSessionRouteChangeReasonKey] intValue];

    //等于AVAudioSessionRouteChangeReasonOldDeviceUnavailable表示旧输出不可用

    if (changeReason==AVAudioSessionRouteChangeReasonOldDeviceUnavailable) {

        AVAudioSessionRouteDescription *routeDescription=dic[AVAudioSessionRouteChangePreviousRouteKey];

        AVAudioSessionPortDescription *portDescription= [routeDescription.outputs firstObject];

        //原设备为耳机则暂停

        if ([portDescription.portType isEqualToString:@"Headphones"]) {



            [_streamer pause];



            UIButton *btn = (UIButton *)[self.view viewWithTag:2000];



            [btn setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];

        }

    }

}

//锁屏时音乐显示(这个方法可以在点击播放时，调用传值)

- (void)setupLockScreenInfoWithSing:(NSString *)sign WithSigner:(NSString *)signer WithImage:(UIImage *)image

{

    // 1.获取锁屏中心

    MPNowPlayingInfoCenter *playingInfoCenter = [MPNowPlayingInfoCenter defaultCenter];



    //初始化一个存放音乐信息的字典

    NSMutableDictionary *playingInfoDict = [NSMutableDictionary dictionary];

    // 2、设置歌曲名

    if (sign) {

        [playingInfoDict setObject:sign forKey:MPMediaItemPropertyAlbumTitle];

    }

    // 设置歌手名

    if (signer) {

        [playingInfoDict setObject:signer forKey:MPMediaItemPropertyArtist];

    }

    // 3设置封面的图片

    //        UIImage *image = [self getMusicImageWithMusicId:self.currentModel];

    if (image) {

        MPMediaItemArtwork *artwork = [[MPMediaItemArtwork alloc] initWithImage:image];

        [playingInfoDict setObject:artwork forKey:MPMediaItemPropertyArtwork];

    }



    // 4设置歌曲的总时长

    //    [playingInfoDict setObject:self.currentModel.detailDuration forKey:MPMediaItemPropertyPlaybackDuration];



    //音乐信息赋值给获取锁屏中心的nowPlayingInfo属性

    playingInfoCenter.nowPlayingInfo = playingInfoDict;





    // 5.开启远程交互

    [[UIApplication sharedApplication] beginReceivingRemoteControlEvents];

}

//锁屏时操作

- (void)remoteControlReceivedWithEvent:(UIEvent *)receivedEvent {

    if (receivedEvent.type == UIEventTypeRemoteControl) {



        UIButton *sender = (UIButton *)[self.view viewWithTag:2000];



        switch (receivedEvent.subtype) {//判断是否为远程控制



            case UIEventSubtypeRemoteControlPause:

                [[HYNEntertainmentController sharedInstance].streamer pause];

                [sender setBackgroundImage:[UIImage imageNamed:@"music_stop_icon"] forState:UIControlStateNormal];



                break;

            case UIEventSubtypeRemoteControlStop:

                break;

            case UIEventSubtypeRemoteControlPlay:

                [[HYNEntertainmentController sharedInstance].streamer play];

                [sender setBackgroundImage:[UIImage imageNamed:@"music_play_icon"] forState:UIControlStateNormal];



                break;

            case UIEventSubtypeRemoteControlTogglePlayPause:

                break;

            case UIEventSubtypeRemoteControlNextTrack:





                break;

            case UIEventSubtypeRemoteControlPreviousTrack:





                break;

            default:

                break;

        }

    }

}

整体图片：

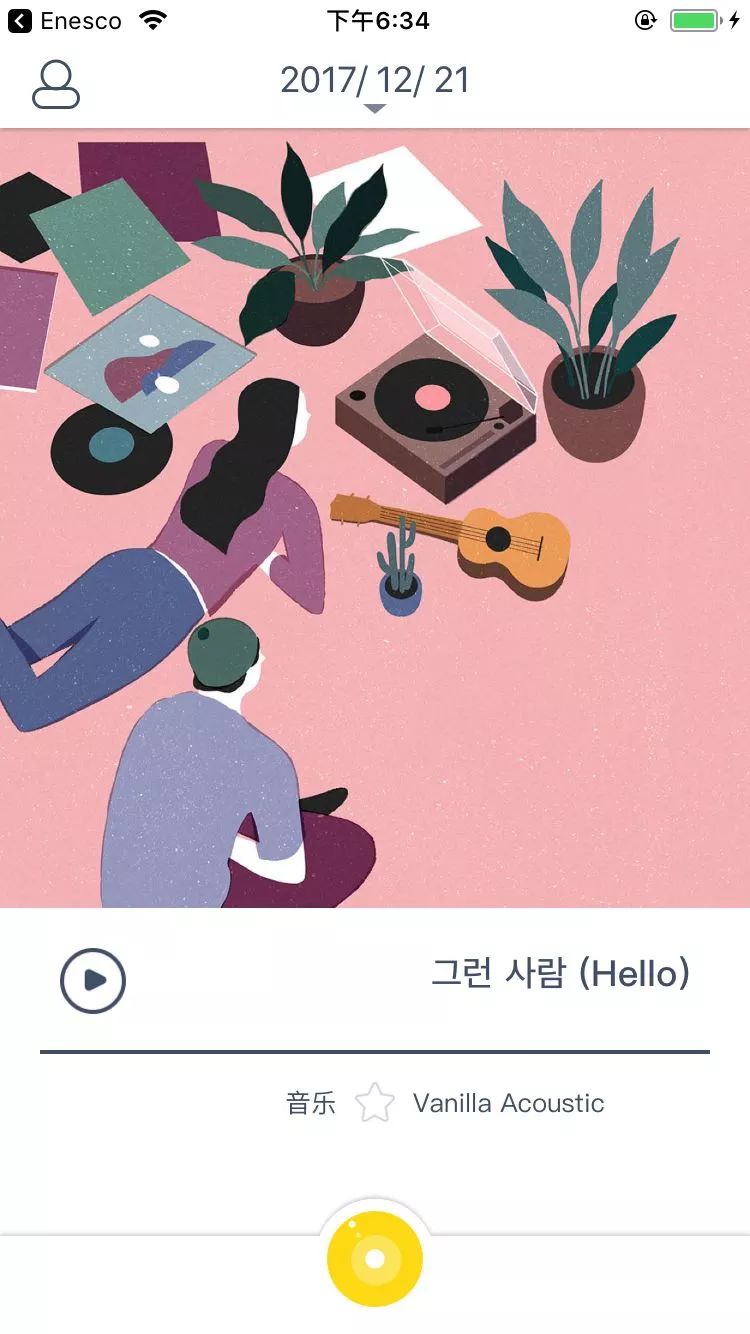

上图为未播放

上图为播放中

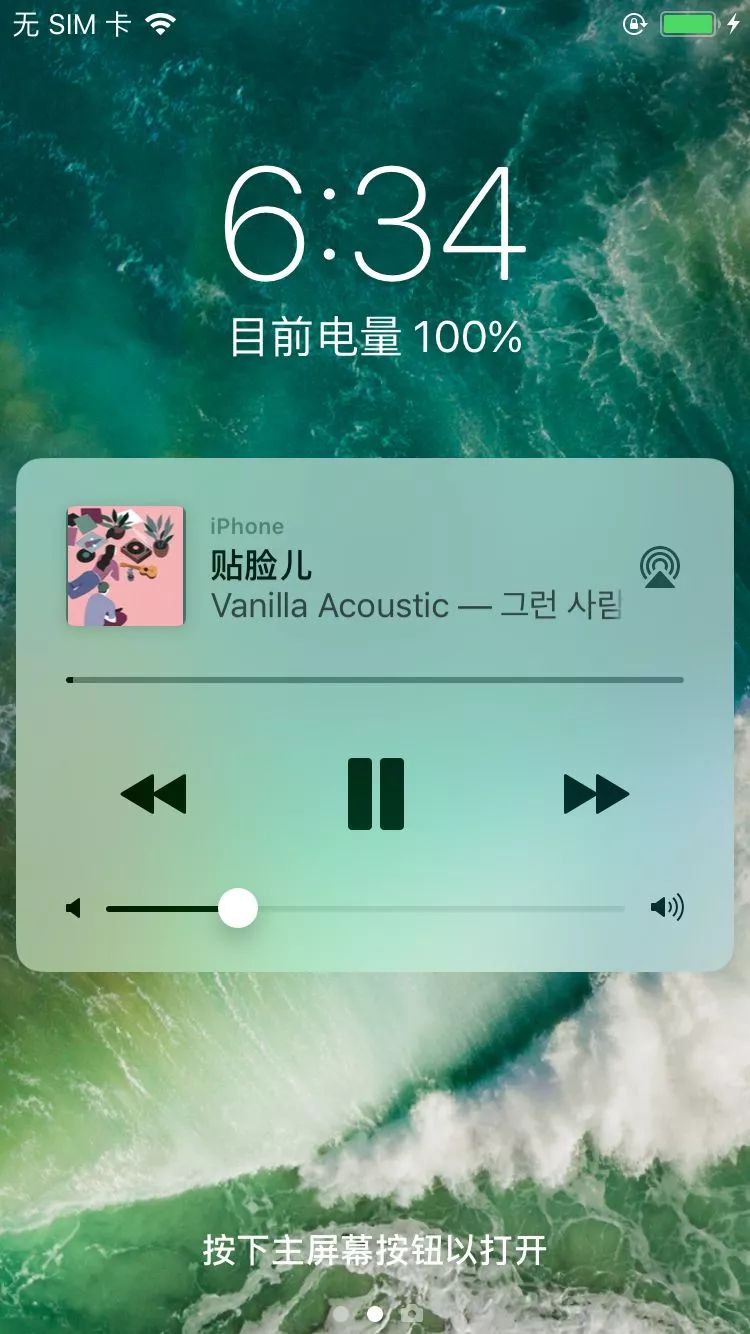

上图为锁屏时状态

应该没有什么要添加的了，暂时告一段落，有不足之处，可以留言，谢谢！
