案例 | lightgbm算法优化-不平衡二分类问题（附代码）
大数据文摘投稿作品
投稿作者｜苏高生
本案例使用的数据为kaggle中“Santander Customer Satisfaction”比赛的数据。此案例为不平衡二分类问题，目标为最大化auc值（ROC曲线下方面积）。目前此比赛已经结束。
竞赛题目链接为：
https://www.kaggle.com/c/santander-customer-satisfaction
2.建模思路
本文档采用微软开源的lightgbm算法进行分类，运行速度极快。具体步骤为:
读取数据；
并行运算：由于lightgbm包可以通过设置相应参数进行并行运算，因此不再调用doParallel与foreach包进行并行运算；
特征选择：使用mlr包提取了99%的chi.square；
调参：逐步调试lgb.cv函数的参数，并多次调试，直到满意为止；
预测结果：用调试好的参数值构建lightgbm模型，输出预测结果；本案例所用程序输出结果的ROC值为0.833386,已超过Private Leaderboard排名第一的结果(0.829072)。
3.lightgbm算法
由于lightgbm算法没有给出具体的数学公式，因此此处不再介绍，如有需要，请查看github项目网址。
lightgbm算法具体介绍网址：
https://github.com/Microsoft/LightGBM
读取数据
options(java.parameters = "-Xmx8g") ## 特征选择时使用，但是需要在加载包之前设置
library(readr)
lgb_tr1 <- read_csv("C:/Users/Administrator/Documents/kaggle/scs_lgb/train.csv")
lgb_te1 <- read_csv("C:/Users/Administrator/Documents/kaggle/scs_lgb/test.csv")
数据探索
1.设置并行运算
library(dplyr)
library(mlr)
library(parallelMap)
parallelStartSocket(2)
2.数据各列初步探索
summarizeColumns(lgb_tr1) %>% View()
3.处理缺失值
impute missing values by mean and mode
imp_tr1 <- impute(
as.data.frame(lgb_tr1),
classes = list(
integer = imputeMean(),
numeric = imputeMean()
)
)
imp_te1 <- impute(
as.data.frame(lgb_te1),
classes = list(
integer = imputeMean(),
numeric = imputeMean()
)
)
处理缺失值后
summarizeColumns(imp_tr1$data) %>% View()
4.观察训练数据类别的比例–数据类别不平衡
table(lgb_tr1$TARGET)
5.剔除数据集中的常数列
lgb_tr2 <- removeConstantFeatures(imp_tr1$data)
lgb_te2 <- removeConstantFeatures(imp_te1$data)
6.保留训练数据集与测试数据及相同的列
tr2_name <- data.frame(tr2_name = colnames(lgb_tr2))
te2_name <- data.frame(te2_name = colnames(lgb_te2))
tr2_name_inner <- tr2_name %>%
inner_join(te2_name, by = c('tr2_name' = 'te2_name'))
TARGET = data.frame(TARGET = lgb_tr2$TARGET)
lgb_tr2 <- lgb_tr2[, c(tr2_name_inner$tr2_name[2:dim(tr2_name_inner)[1]])]
lgb_te2 <- lgb_te2[, c(tr2_name_inner$tr2_name[2:dim(tr2_name_inner)[1]])]
lgb_tr2 <- cbind(lgb_tr2, TARGET)
注：
1）由于本次使用lightgbm算法，故而不对数据进行标准化处理；
2）lightgbm算法运行效率极高，1GB内不进行特征筛选也可以运行的极快，但是此处进行特征筛选，以进一步加快运行速率；
3）本案例直接进行特征筛选，未生成衍生变量，原因为：不知特征实际意义，不好随机生成。
特征筛选–卡方检验
library(lightgbm)
1.试算最大权重值程序，后面将继续优化
grid_search <- expand.grid(
weight = seq(1, 30, 2)
## table(lgb_tr1$TARGET)[1] / table(lgb_tr1$TARGET)[2] = 24.27261
## 故而设定weight在[1, 30]之间
)
lgb_rate_1 <- numeric(length = nrow(grid_search))
set.seed(0)
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr2$TARGET * i + 1) / sum(lgb_tr2$TARGET * i + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr2[, 1:300]),
label = lgb_tr2$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc'
)
# 交叉验证
lgb_tr2_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
learning_rate = .1,
num_threads = 2,
early_stopping_rounds = 10
)
lgb_rate_1[i] <- unlist(lgb_tr2_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr2_mod$record_evals$valid$auc$eval))]
}
library(ggplot2)
grid_search$perf <- lgb_rate_1
ggplot(grid_search,aes(x = weight, y = perf)) +
geom_point()
从此图可知auc值受权重影响不大,在weight=5时达到最大。
3.特征选择
1)特征选择
lgb_tr2$TARGET <- factor(lgb_tr2$TARGET)
lgb.task <- makeClassifTask(data = lgb_tr2, target = 'TARGET')
lgb.task.smote <- oversample(lgb.task, rate = 5)
fv_time <- system.time(
fv <- generateFilterValuesData(
lgb.task.smote,
method = c('chi.squared')
## 此处可以使用信息增益/卡方检验的方法，但是不建议使用随机森林方法，效率极低
## 如果有兴趣，也可以尝试IV值方法筛选
## 特征工程决定目标值（此处为auc）的上限，可以把特征筛选方法作为超参数处理
)
)
2)制图查看
# plotFilterValues(fv)
plotFilterValuesGGVIS(fv)
3)提取99%的chi.squared（lightgbm算法效率极高，因此可以取更多的变量）
注：提取的X%的chi.squared中的X可以作为超参数处理。
fv_data2 <- fv$data %>%
arrange(desc(chi.squared)) %>%
mutate(chi_gain_cul = cumsum(chi.squared) / sum(chi.squared))
fv_data2_filter <- fv_data2 %>% filter(chi_gain_cul <= 0.99)
dim(fv_data2_filter) ## 减少了一半的自变量
fv_feature <- fv_data2_filter$name
lgb_tr3 <- lgb_tr2[, c(fv_feature, 'TARGET')]
lgb_te3 <- lgb_te2[, fv_feature]
4)写出数据
write_csv(lgb_tr3, 'C:/users/Administrator/Documents/kaggle/scs_lgb/lgb_tr3_chi.csv')
write_csv(lgb_te3, 'C:/users/Administrator/Documents/kaggle/scs_lgb/lgb_te3_chi.csv')
算法
lgb_tr <- rxImport('C:/Users/Administrator/Documents/kaggle/scs_lgb/lgb_tr3_chi.csv')
lgb_te <- rxImport('C:/Users/Administrator/Documents/kaggle/scs_lgb/lgb_te3_chi.csv')
## 建议lgb_te数据在预测时再读取，以节约内存
library(lightgbm)
1.调试weight参数
grid_search <- expand.grid(
weight = 1:30
)
perf_weight_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * i + 1) / sum(lgb_tr$TARGET * i + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc'
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
learning_rate = .1,
num_threads = 2,
early_stopping_rounds = 10
)
perf_weight_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
library(ggplot2)
grid_search$perf <- perf_weight_1
ggplot(grid_search,aes(x = weight, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在weight=4时达到最大,呈递减趋势。
2.调试learning_rate参数
grid_search <- expand.grid(
learning_rate = 2 ^ (-(8:1))
)
perf_learning_rate_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_learning_rate_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_learning_rate_1
ggplot(grid_search,aes(x = learning_rate, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在learning_rate=2^(-5) 时达到最大,但是 2^(-(6:3)) 区别极小，故取learning_rate = .125，提高运行速度。
3.调试num_leaves参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = seq(50, 800, 50)
)
perf_num_leaves_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_num_leaves_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_num_leaves_1
ggplot(grid_search,aes(x = num_leaves, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在num_leaves=650时达到最大。
4.调试min_data_in_leaf参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
min_data_in_leaf = 2 ^ (1:7)
)
perf_min_data_in_leaf_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
min_data_in_leaf = grid_search[i, 'min_data_in_leaf']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_min_data_in_leaf_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_min_data_in_leaf_1
ggplot(grid_search,aes(x = min_data_in_leaf, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值对min_data_in_leaf不敏感，因此不做调整。
5.调试max_bin参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin = 2 ^ (5:10)
)
perf_max_bin_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_max_bin_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_max_bin_1
ggplot(grid_search,aes(x = max_bin, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在max_bin=2^10 时达到最大,需要再次微调max_bin值。
6.微调max_bin参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin = 100 * (6:15)
)
perf_max_bin_2 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_max_bin_2[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_max_bin_2
ggplot(grid_search,aes(x = max_bin, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在max_bin=1000时达到最大。
7.调试min_data_in_bin参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 2 ^ (1:9)
)
perf_min_data_in_bin_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_min_data_in_bin_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_min_data_in_bin_1
ggplot(grid_search,aes(x = min_data_in_bin, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在min_data_in_bin=8时达到最大,但是变化极其细微,因此不做调整。
8.调试feature_fraction参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = seq(.5, 1, .02)
)
perf_feature_fraction_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_feature_fraction_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_feature_fraction_1
ggplot(grid_search,aes(x = feature_fraction, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在feature_fraction=.62时达到最大,feature_fraction在[.60,.62]之间时，auc值保持稳定,表现较好;从.64开始呈下降趋势。
9.调试min_sum_hessian参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = seq(0, .02, .001)
)
perf_min_sum_hessian_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_min_sum_hessian_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_min_sum_hessian_1
ggplot(grid_search,aes(x = min_sum_hessian, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在min_sum_hessian=0.005时达到最大,建议min_sum_hessian取值在[0.002, 0.005]区间,0.005后呈递减趋势。
10.调试lamda参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = seq(0, .01, .002),
lambda_l2 = seq(0, .01, .002)
)
perf_lamda_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_lamda_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_lamda_1
ggplot(data = grid_search, aes(x = lambda_l1, y = perf)) +
geom_point() +
facet_wrap(~ lambda_l2, nrow = 5)
从此图可知建议lambda_l1 = 0, lambda_l2 = 0
11.调试drop_rate参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = seq(0, 1, .1)
)
perf_drop_rate_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate']
)

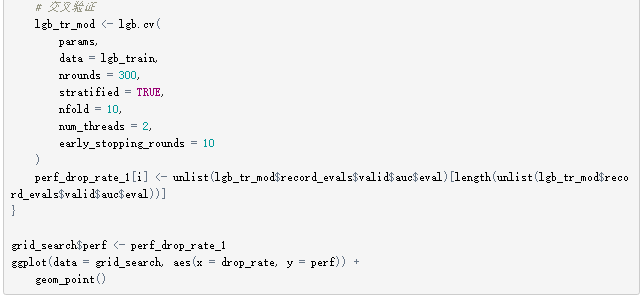

# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_drop_rate_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_drop_rate_1
ggplot(data = grid_search, aes(x = drop_rate, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在drop_rate=0.2时达到最大,在0, .2, .5较好；在[0, 1]变化不大。
12.调试max_drop参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = seq(1, 10, 2)
)
perf_max_drop_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 4 + 1) / sum(lgb_tr$TARGET * 4 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_max_drop_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_max_drop_1
ggplot(data = grid_search, aes(x = max_drop, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在max_drop=5时达到最大,在[1, 10]区间变化较小。
二次调参
1.调试weight参数
grid_search <- expand.grid(
learning_rate = .125,
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_weight_2 <- numeric(length = nrow(grid_search))
for(i in 1:20){
lgb_weight <- (lgb_tr$TARGET * i + 1) / sum(lgb_tr$TARGET * i + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[1, 'learning_rate'],
num_leaves = grid_search[1, 'num_leaves'],
max_bin = grid_search[1, 'max_bin'],
min_data_in_bin = grid_search[1, 'min_data_in_bin'],
feature_fraction = grid_search[1, 'feature_fraction'],
min_sum_hessian = grid_search[1, 'min_sum_hessian'],
lambda_l1 = grid_search[1, 'lambda_l1'],
lambda_l2 = grid_search[1, 'lambda_l2'],
drop_rate = grid_search[1, 'drop_rate'],
max_drop = grid_search[1, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
learning_rate = .1,
num_threads = 2,
early_stopping_rounds = 10
)
perf_weight_2[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
library(ggplot2)
ggplot(data.frame(num = 1:length(perf_weight_2), perf = perf_weight_2), aes(x = num, y = perf)) +
geom_point() +
geom_smooth()
从此图可知auc值在weight>=3时auc趋于稳定, weight=7 the max
2.调试learning_rate参数
grid_search <- expand.grid(
learning_rate = seq(.05, .5, .03),
num_leaves = 650,
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_learning_rate_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_learning_rate_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_learning_rate_1
ggplot(data = grid_search, aes(x = learning_rate, y = perf)) +
geom_point() +
geom_smooth()
结论：learning_rate=.11时，auc最大。
3.调试num_leaves参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = seq(100, 800, 50),
max_bin=1000,
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_num_leaves_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_num_leaves_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_num_leaves_1
ggplot(data = grid_search, aes(x = num_leaves, y = perf)) +
geom_point() +
geom_smooth()
结论：num_leaves=200时，auc最大。
4.调试max_bin参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = 200,
max_bin = seq(100, 1500, 100),
min_data_in_bin = 8,
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_max_bin_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_max_bin_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_max_bin_1
ggplot(data = grid_search, aes(x = max_bin, y = perf)) +
geom_point() +
geom_smooth()
结论：max_bin=600时，auc最大;400，800也是可接受值。
5.调试min_data_in_bin参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = 200,
max_bin = 600,
min_data_in_bin = seq(5, 50, 5),
feature_fraction = .62,
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_min_data_in_bin_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_min_data_in_bin_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_min_data_in_bin_1
ggplot(data = grid_search, aes(x = min_data_in_bin, y = perf)) +
geom_point() +
geom_smooth()
结论：min_data_in_bin=45时，auc最大；其中25是可接受值。
6.调试feature_fraction参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = 200,
max_bin = 600,
min_data_in_bin = 45,
feature_fraction = seq(.5, .9, .02),
min_sum_hessian = .005,
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_feature_fraction_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_feature_fraction_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_feature_fraction_1
ggplot(data = grid_search, aes(x = feature_fraction, y = perf)) +
geom_point() +
geom_smooth()
结论：feature_fraction=.54时，auc最大, .56, .58时也较好。
7.调试min_sum_hessian参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = 200,
max_bin = 600,
min_data_in_bin = 45,
feature_fraction = .54,
min_sum_hessian = seq(.001, .008, .0005),
lambda_l1 = 0,
lambda_l2 = 0,
drop_rate = .2,
max_drop = 5
)
perf_min_sum_hessian_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_min_sum_hessian_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_min_sum_hessian_1
ggplot(data = grid_search, aes(x = min_sum_hessian, y = perf)) +
geom_point() +
geom_smooth()
结论：min_sum_hessian=0.0065时auc取得最大值，取min_sum_hessian=0.003，0.0055时可接受。
8.调试lambda参数
grid_search <- expand.grid(
learning_rate = .11,
num_leaves = 200,
max_bin = 600,
min_data_in_bin = 45,
feature_fraction = .54,
min_sum_hessian = 0.0065,
lambda_l1 = seq(0, .001, .0002),
lambda_l2 = seq(0, .001, .0002),
drop_rate = .2,
max_drop = 5
)
perf_lambda_1 <- numeric(length = nrow(grid_search))
for(i in 1:nrow(grid_search)){
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
# 参数
params <- list(
objective = 'binary',
metric = 'auc',
learning_rate = grid_search[i, 'learning_rate'],
num_leaves = grid_search[i, 'num_leaves'],
max_bin = grid_search[i, 'max_bin'],
min_data_in_bin = grid_search[i, 'min_data_in_bin'],
feature_fraction = grid_search[i, 'feature_fraction'],
min_sum_hessian = grid_search[i, 'min_sum_hessian'],
lambda_l1 = grid_search[i, 'lambda_l1'],
lambda_l2 = grid_search[i, 'lambda_l2'],
drop_rate = grid_search[i, 'drop_rate'],
max_drop = grid_search[i, 'max_drop']
)
# 交叉验证
lgb_tr_mod <- lgb.cv(
params,
data = lgb_train,
nrounds = 300,
stratified = TRUE,
nfold = 10,
num_threads = 2,
early_stopping_rounds = 10
)
perf_lambda_1[i] <- unlist(lgb_tr_mod$record_evals$valid$auc$eval)[length(unlist(lgb_tr_mod$record_evals$valid$auc$eval))]
}
grid_search$perf <- perf_lambda_1
ggplot(data = grid_search, aes(x = lambda_l1, y = perf)) +
geom_point() +
facet_wrap(~ lambda_l2, nrow = 5)
结论：lambda与auc整体呈负相关，取lambda_l1=.0002, lambda_l2 = .0004
9.调试drop_rate参数
结论：drop_rate=.4时取到最大值，.15, .25可接受。
10.调试max_drop参数
结论：drop_rate=.4时取到最大值，.15, .25可接受。
预测
1.权重
lgb_weight <- (lgb_tr$TARGET * 7 + 1) / sum(lgb_tr$TARGET * 7 + 1)
2.训练数据集
lgb_train <- lgb.Dataset(
data = data.matrix(lgb_tr[, 1:148]),
label = lgb_tr$TARGET,
free_raw_data = FALSE,
weight = lgb_weight
)
3.训练
# 参数
params <- list(
learning_rate = .11,
num_leaves = 200,
max_bin = 600,
min_data_in_bin = 45,
feature_fraction = .54,
min_sum_hessian = 0.0065,
lambda_l1 = .0002,
lambda_l2 = .0004,
drop_rate = .4,
max_drop = 14
)
# 模型
lgb_mod <- lightgbm(
params = params,
data = lgb_train,
nrounds = 300,
early_stopping_rounds = 10,
num_threads = 2
)
# 预测
lgb.pred <- predict(lgb_mod, data.matrix(lgb_te))
4.结果
lgb.pred2 <- matrix(unlist(lgb.pred), ncol = 1)
lgb.pred3 <- data.frame(lgb.pred2)
5.输出
write.csv(lgb.pred3, "C:/Users/Administrator/Documents/kaggle/scs_lgb/lgb.pred1_tr.csv")
注： 此处给在校读书的朋友一些建议：
1.在学校学习机器学习算法时，测试所用数据量一般较少，因此可以尝试大多数算法，大多数的R函数，例如测试随机森林算法时，可以选择randomforest包，如果数据量稍微增多，可以设置并行运算，但是如果数据量达到GB级别，并行运算randomforest包也处理不了了，并且内存会溢出；建议使用专业版R中的函数；
2.学校学习主要针对理论进行学习，测试数据一般较为干净，实际数据结构一般更为复杂一些。
大数据文摘微信公众号后台回复“算法”可获得完整代码。
本文为投稿作品，仅代表个人观点。
作者介绍：
苏高生，西南财经大学统计学硕士毕业，现就职于中国电信，主要负责企业存量客户数据分析、数据建模。 研究方向：机器学习。知乎专栏链接接：
https://zhuanlan.zhihu.com/p/34216748
关于算法，如有疑问，请联系E-mail：sugs01@outlook.com
【今日机器学习概念】
相关内容
微信扫码咨询专知VIP会员
