源码剖析--SVPullToRefresh

2017 年 10 月 21 日 CocoaChina 火之玉

阅读源码之路终于开启了, 小白一枚, 大神们要多多照顾啊, 有什么建议可以评论或私信, 在此多谢了!!!!

概要

文件结构

文章目录

前言
API说明
原理解析
总结

1.前言

作为一个刷新框架, SVPullToRefresh以其简洁, 通俗易懂为大家所推崇. 对于刚开始读源码的我来说, 再合适不过了, 而且最近正在做一个刷新demo, 用到, 顺便整理一下, 学习学习.

SV是个熟悉的前缀, 就算没听过SVPullToRefresh, 也听过SVProgressHUD吧. 除了这些, 作者Sam还有其他优秀的开源代码, 大家感兴趣可以看看.

2.API说明

2.1 下拉刷新

下拉刷新ScrollView

@class SVPullToRefreshView;

@interface UIScrollView (SVPullToRefresh)

typedef NS_ENUM(NSUInteger, SVPullToRefreshPosition) {

SVPullToRefreshPositionTop = 0,

SVPullToRefreshPositionBottom,

};

//默认添加方法, position为top

- (void)addPullToRefreshWithActionHandler:(void (^)(void))actionHandler;

/*

自定义添加下拉刷新的方法, 可以改变刷新方式;

top为下拉刷新, bottom为上拉刷新;

*/

- (void)addPullToRefreshWithActionHandler:(void (^)(void))actionHandler position:(SVPullToRefreshPosition)position;

//触发一次刷新, 会执行handler这个block里面的方法

- (void)triggerPullToRefresh;

//下拉刷新视图

@property (nonatomic, strong, readonly) SVPullToRefreshView *pullToRefreshView;

//是否展示下拉刷新视图(须在addPullToRefreshWithActionHandler:方法后面)

@property (nonatomic, assign) BOOL showsPullToRefresh;

@end

下拉刷新View

//只保留可更改选项

@interface SVPullToRefreshView : UIView

//下拉刷新箭头颜色

@property (nonatomic, strong) UIColor *arrowColor;

//文本颜色

@property (nonatomic, strong) UIColor *textColor;

//指示器view颜色

@property (nonatomic, strong, readwrite) UIColor *activityIndicatorViewColor NS_AVAILABLE_IOS(5_0);

//指示器类型

@property (nonatomic, readwrite) UIActivityIndicatorViewStyle activityIndicatorViewStyle;

//根据刷新状态设置标题

- (void)setTitle:(NSString *)title forState:(SVPullToRefreshState)state;

//根据刷新状态设置副标题

- (void)setSubtitle:(NSString *)subtitle forState:(SVPullToRefreshState)state;

//根据刷新状态设置自定义View

- (void)setCustomView:(UIView *)view forState:(SVPullToRefreshState)state;

//开始动画

- (void)startAnimating;

//结束动画

- (void)stopAnimating;

//最后更新日期(NSDate)

@property (nonatomic, strong) NSDate *lastUpdatedDate DEPRECATED_ATTRIBUTE;

//日期格式(NSDateFormatter)

@property (nonatomic, strong) NSDateFormatter *dateFormatter DEPRECATED_ATTRIBUTE;

@end

是我自己测试的, 把所有属性玩了一遍, 亲测好用, O(∩_∩)O哈哈~

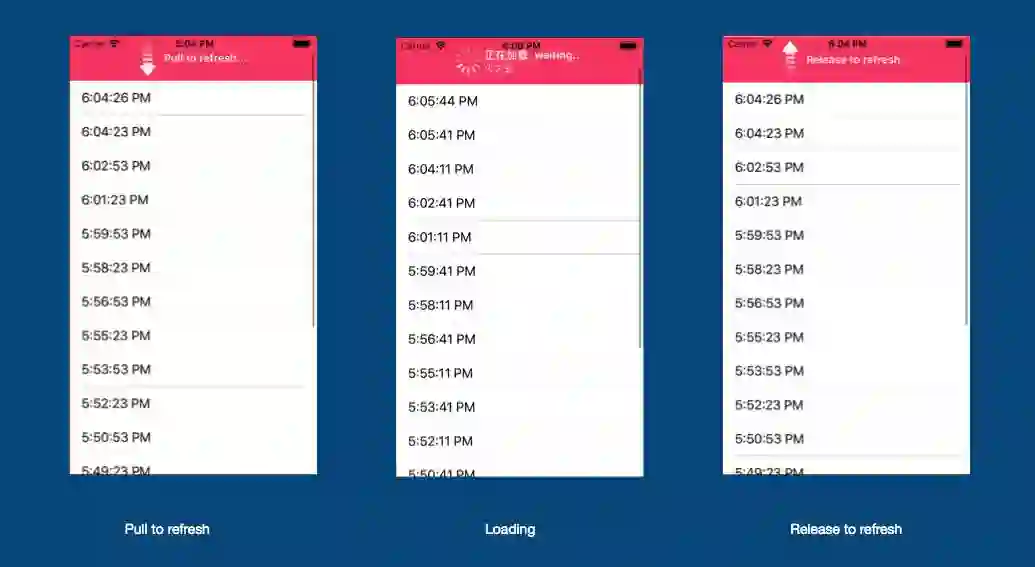

下拉测试效果图

[self.tableView addPullToRefreshWithActionHandler:^{

//下拉刷新数据

}];

self.tableView.pullToRefreshView.backgroundColor = RedColor;

self.tableView.pullToRefreshView.arrowColor = [UIColor whiteColor];

self.tableView.pullToRefreshView.textColor = [UIColor whiteColor];

[self.tableView.pullToRefreshView setSubtitle:@"火之玉" forState:SVInfiniteScrollingStateLoading];

[self.tableView.pullToRefreshView setTitle:@"正在加载..waiting.." forState:SVInfiniteScrollingStateLoading];

self.tableView.pullToRefreshView.activityIndicatorViewColor = BlueColor;

self.tableView.pullToRefreshView.activityIndicatorViewStyle = UIActivityIndicatorViewStyleWhiteLarge;

// UIView *pullView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, 50, 50)];

// pullView.backgroundColor = [UIColor cyanColor];

// [self.tableView.pullToRefreshView setCustomView:pullView forState:SVPullToRefreshStateAll];

2.2 上拉刷新

上拉刷新ScrollView

@class SVInfiniteScrollingView;

@interface UIScrollView (SVInfiniteScrolling)

//默认添加上拉刷新视图

- (void)addInfiniteScrollingWithActionHandler:(void (^)(void))actionHandler;

////触发一次刷新, 会执行handler这个block里面的方法

- (void)triggerInfiniteScrolling;

//上拉刷新视图

@property (nonatomic, strong, readonly) SVInfiniteScrollingView *infiniteScrollingView;

//是否展示上拉刷新视图

@property (nonatomic, assign) BOOL showsInfiniteScrolling;

@end

上拉刷新View

@interface SVInfiniteScrollingView : UIView

//指示器类型

@property (nonatomic, readwrite) UIActivityIndicatorViewStyle activityIndicatorViewStyle;

//刷新状态

@property (nonatomic, readonly) SVInfiniteScrollingState state;

//是否取消上拉加载

@property (nonatomic, readwrite) BOOL enabled;

//根据刷新状态设置自定义View

- (void)setCustomView:(UIView *)view forState:(SVInfiniteScrollingState)state;

//开始动画

- (void)startAnimating;

//结束动画

- (void)stopAnimating;

@end

附上测试效果:

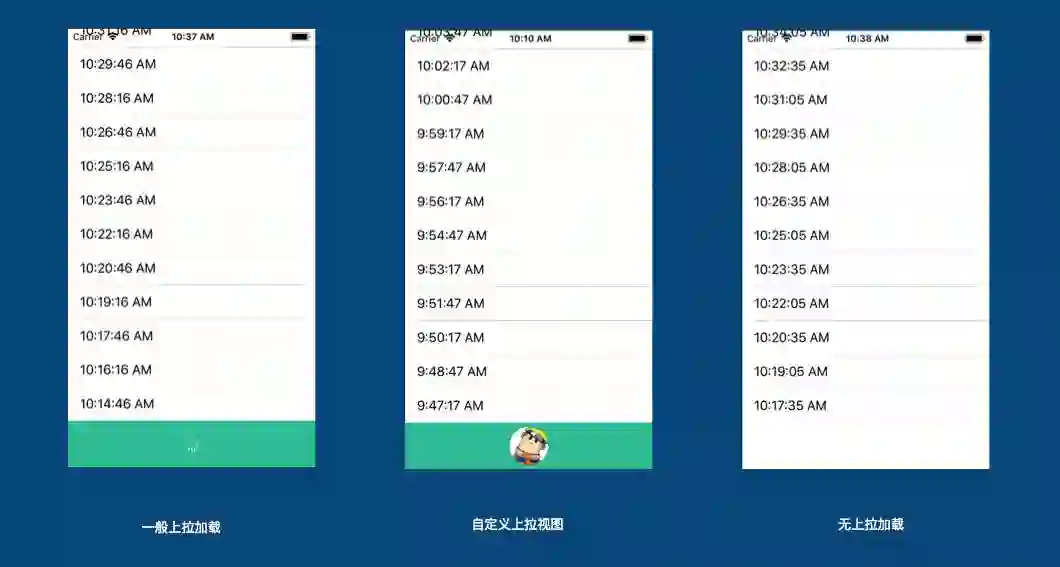

上拉测试效果图

// setup infinite scrolling

[self.tableView addInfiniteScrollingWithActionHandler:^{

//上拉刷新数据

}];

self.tableView.infiniteScrollingView.backgroundColor = BlueColor;

self.tableView.infiniteScrollingView.activityIndicatorViewStyle = UIActivityIndicatorViewStyleWhite;

// UIImageView *pullImageView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, 50, 50)];

// pullImageView.image = [UIImage imageNamed:@"avatar"];

// pullImageView.layer.cornerRadius = 25;

// pullImageView.layer.masksToBounds = YES;

// [self.tableView.infiniteScrollingView setCustomView:pullImageView forState:SVPullToRefreshStateAll];

//

// self.tableView.infiniteScrollingView.enabled = NO;

3.原理解析

3.1 下拉刷新

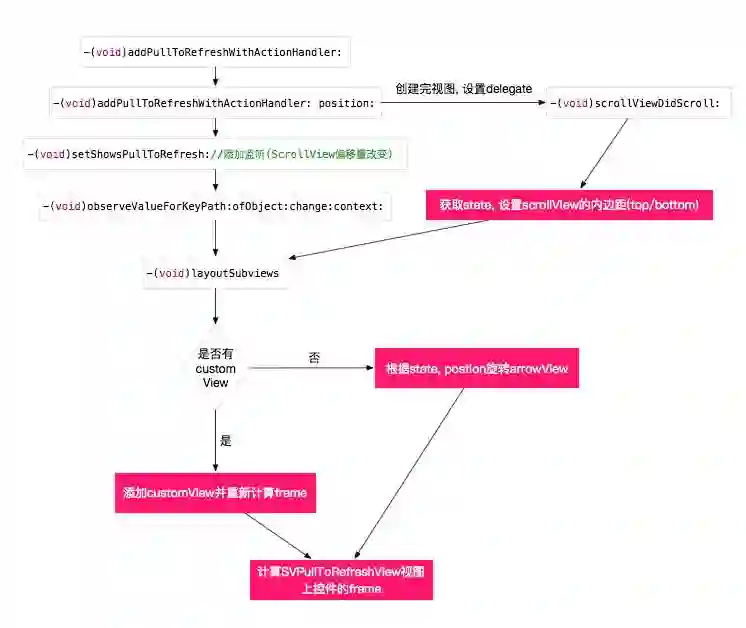

下拉刷新流程图

以上是下拉刷新的主要流程图, 接下来我们就来扣扣细节;

3.1.1 -(void)triggerPullToRefresh触发了一次刷新:

以下是方法的内部实现;

- (void)triggerPullToRefresh {

self.pullToRefreshView.state = SVPullToRefreshStateTriggered;

[self.pullToRefreshView startAnimating];

}

看了一眼, 当时就懵了; 怎么就这点儿代码, 完全看不出来啊, 别着急, 接着一个个点进去看. 发现state属性的setter方法里面做了处理;

- (void)setState:(SVPullToRefreshState)newState {



if(_state == newState)

return;



SVPullToRefreshState previousState = _state;

_state = newState;



[self setNeedsLayout];

[self layoutIfNeeded];



switch (newState) {

case SVPullToRefreshStateAll:

case SVPullToRefreshStateStopped:

[self resetScrollViewContentInset];

break;



case SVPullToRefreshStateTriggered:

break;



case SVPullToRefreshStateLoading:

[self setScrollViewContentInsetForLoading];



if(previousState == SVPullToRefreshStateTriggered && pullToRefreshActionHandler)

pullToRefreshActionHandler();

break;

}

}

接下来拆分一下:

self.pullToRefreshView.state = SVPullToRefreshStateTriggered;

执行完这步代码, 执行一次-(void)setState:, 之后break跳出;

[self.pullToRefreshView startAnimating];

这步pullToRefreshView执行-(void)startAnimating, 方法内部实现如下:

- (void)startAnimating{

...

self.state = SVPullToRefreshStateLoading;

}

可以看出之后又执行了一次-(void)setState:, 这时previousState == SVPullToRefreshStateTriggered条件满足, 执行infiniteScrollingHandler(), 也就执行了block里面刷新数据的方法;

3.1.2 利用runtime+KVO添加成员变量

代码如下:

static char UIScrollViewPullToRefreshView;

- (void)setPullToRefreshView:(SVPullToRefreshView *)pullToRefreshView {

[self willChangeValueForKey:@"SVPullToRefreshView"];

objc_setAssociatedObject(self, &UIScrollViewPullToRefreshView,

pullToRefreshView,

OBJC_ASSOCIATION_ASSIGN);

[self didChangeValueForKey:@"SVPullToRefreshView"];

}

- (SVPullToRefreshView *)pullToRefreshView {

return objc_getAssociatedObject(self, &UIScrollViewPullToRefreshView);

}

关于KVO:

从代码中可以看出willChangeValueForKey :和didChangeValueForKey :是KVO的一部分, 源文件的代码为:

@interface NSObject(NSKeyValueObserverNotification)

- (void)willChangeValueForKey:(NSString *)key;

- (void)didChangeValueForKey:(NSString *)key;

@end

用了这两个方法也就代表手动触发了KVO, 这也为了控制回调的调用时机, 在setPullToRefreshView:中触发. 而手动触发的场景一般是不使用属性，或重写了setter，需要手动通知系统.

一般我们是不需要用的, 比如@property写一个属性, 系统会以某种方式在中间插入 wilChangeValueForKey: 、 didChangeValueForKey: 和 observeValueForKeyPath:ofObject:change:context: 的调用.

想要了解更多, 可以看一下

KVO Programming Guide - Apple官方文档

关于runtime:

这里要知道这两个方法:

//set

objc_setAssociatedObject(id _Nonnull object, const void * _Nonnull key,

id _Nullable value, objc_AssociationPolicy policy)

//get

objc_getAssociatedObject(id _Nonnull object, const void * _Nonnull key)

//objc_AssociationPolicy类型说明

//关联时采用的协议，有assign，retain，copy等协议，一般使用OBJC_ASSOCIATION_RETAIN_NONATOMIC

typedef OBJC_ENUM(uintptr_t, objc_AssociationPolicy) {

OBJC_ASSOCIATION_ASSIGN = 0, /**< Specifies a weak reference to the associated object. */

OBJC_ASSOCIATION_RETAIN_NONATOMIC = 1, /**< Specifies a strong reference to the associated object.

* The association is not made atomically. */

OBJC_ASSOCIATION_COPY_NONATOMIC = 3, /**< Specifies that the associated object is copied.

* The association is not made atomically. */

OBJC_ASSOCIATION_RETAIN = 01401, /**< Specifies a strong reference to the associated object.

* The association is made atomically. */

OBJC_ASSOCIATION_COPY = 01403 /**< Specifies that the associated object is copied.

* The association is made atomically. */

};

看完所有API, 其实也了解的差不多, 这样就给scrollView增加了一个SVPullToRefreshView类型的属性;

3.1.3 监听探究

这里主要涉及scrollView的三个监听, contentOffset, contentSize, frame;

frame就不用说了, 说一下另外两个;

contentOffset是scrollview当前显示区域顶点相对于frame顶点的偏移量。可以理解为contentview的顶点相对于scrollerVIew的frame的偏移量;

contentSize是scrollview当前所有内容区域的大小;

顺便提下contentInset, 下面用到, 表示contentView.frame与scrollerView.frame的关系, 可以类比于css里的padding.

例如:

testScrollView.contentInset = UIEdgeInsetsMake(10, 10, 10, 10);

则testScrollView的top, left, bottom, right为10;

好了, 现在到重头戏了, 监听如何执行的, 代码如下:

#pragma mark - Observing

- (void)observeValueForKeyPath:(NSString *)keyPath ofObject:(id)object change:(NSDictionary *)change context:(void *)context {

if([keyPath isEqualToString:@"contentOffset"])

[self scrollViewDidScroll:[[change valueForKey:NSKeyValueChangeNewKey] CGPointValue]];

else if([keyPath isEqualToString:@"contentSize"]) {

[self layoutSubviews];

CGFloat yOrigin;

...

self.frame = CGRectMake(0, yOrigin, self.bounds.size.width, SVPullToRefreshViewHeight);

}

else if([keyPath isEqualToString:@"frame"])

[self layoutSubviews];

}

可以理解为当监听contentOffset改变时, scrollView滚动, 此时执行scrollViewDidScroll:方法得到此时的滚动state; 当为contentSize和frame时, scrollView视图发生变化, 此时执行layoutSubviews重新加载视图, 包括根据状态改变视图样式, 都在这里面执行;

scrollViewDidScroll:方法:

- (void)scrollViewDidScroll:(CGPoint)contentOffset {

if(self.state != SVPullToRefreshStateLoading) {

CGFloat scrollOffsetThreshold = 0;

switch (self.position) {

case SVPullToRefreshPositionTop:

scrollOffsetThreshold = self.frame.origin.y - self.originalTopInset;

break;

case SVPullToRefreshPositionBottom:

scrollOffsetThreshold = MAX(self.scrollView.contentSize.height - self.scrollView.bounds.size.height, 0.0f) + self.bounds.size.height + self.originalBottomInset;

break;

}

if(!self.scrollView.isDragging && self.state == SVPullToRefreshStateTriggered)

self.state = SVPullToRefreshStateLoading;

else if(contentOffset.y < scrollOffsetThreshold && self.scrollView.isDragging && self.state == SVPullToRefreshStateStopped && self.position == SVPullToRefreshPositionTop)

self.state = SVPullToRefreshStateTriggered;

else if(contentOffset.y >= scrollOffsetThreshold && self.state != SVPullToRefreshStateStopped && self.position == SVPullToRefreshPositionTop)

self.state = SVPullToRefreshStateStopped;

else if(contentOffset.y > scrollOffsetThreshold && self.scrollView.isDragging && self.state == SVPullToRefreshStateStopped && self.position == SVPullToRefreshPositionBottom)

self.state = SVPullToRefreshStateTriggered;

else if(contentOffset.y <= scrollOffsetThreshold && self.state != SVPullToRefreshStateStopped && self.position == SVPullToRefreshPositionBottom)

self.state = SVPullToRefreshStateStopped;

} else {

CGFloat offset;

UIEdgeInsets contentInset;

switch (self.position) {

case SVPullToRefreshPositionTop:

...

self.scrollView.contentInset = UIEdgeInsetsMake(offset, contentInset.left, contentInset.bottom, contentInset.right);

break;

case SVPullToRefreshPositionBottom:

if (self.scrollView.contentSize.height >= self.scrollView.bounds.size.height) {

...

self.scrollView.contentInset = UIEdgeInsetsMake(contentInset.top, contentInset.left, offset, contentInset.right);

} else if (self.wasTriggeredByUser) {

...

self.scrollView.contentInset = UIEdgeInsetsMake(-offset, contentInset.left, contentInset.bottom, contentInset.right);

}

break;

}

}

}

可以看出根据postion位置, state是SVPullToRefreshStateLoading状态的时候, 改变scrollView的contentInset;非该状态的时候, 根据contentOffset和postion设置state;

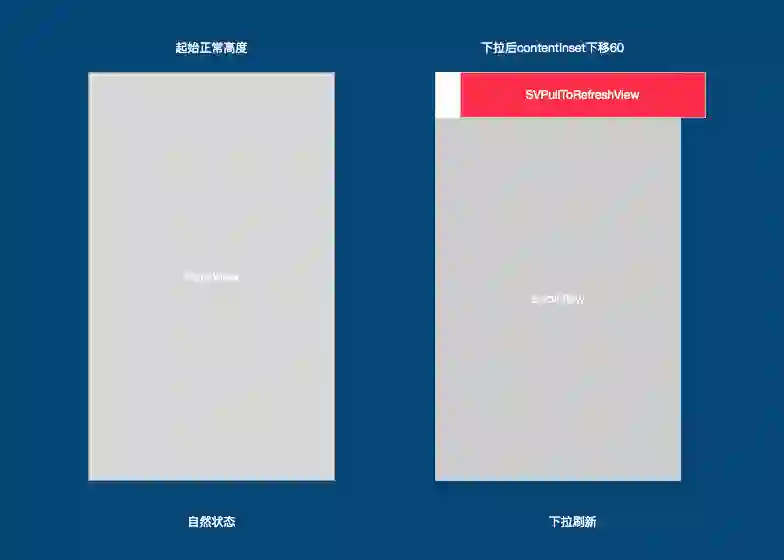

下拉刷新后, scrollView的内容高度下移60; 当然只是内容高度, 整个scrollView还是全屏的, 对比css中padding理解一下;注:SVPullToRefreshView向右移动一点儿距离, 方便看视图层级;layoutSubviews方法:

- (void)layoutSubviews {



for(id otherView in self.viewForState) {

if([otherView isKindOfClass:[UIView class]])

//从父视图剥离

[otherView removeFromSuperview];

}



id customView = [self.viewForState objectAtIndex:self.state];

BOOL hasCustomView = [customView isKindOfClass:[UIView class]];



self.titleLabel.hidden = hasCustomView;

self.subtitleLabel.hidden = hasCustomView;

self.arrow.hidden = hasCustomView;



if(hasCustomView) {

//添加customView

[self addSubview:customView];

...

[customView setFrame:CGRectMake(origin.x, origin.y, viewBounds.size.width, viewBounds.size.height)];

}

else {

//根据state旋转arrowView

switch (self.state) {

case SVPullToRefreshStateAll:

case SVPullToRefreshStateStopped:

self.arrow.alpha = 1;

[self.activityIndicatorView stopAnimating];

switch (self.position) {

case SVPullToRefreshPositionTop:

[self rotateArrow:0 hide:NO];

break;

case SVPullToRefreshPositionBottom:

[self rotateArrow:(float)M_PI hide:NO];

break;

}

break;



...

}



CGFloat leftViewWidth = MAX(self.arrow.bounds.size.width,self.activityIndicatorView.bounds.size.width);



...

CGFloat labelX = (self.bounds.size.width / 2) - (totalMaxWidth / 2) + leftViewWidth + margin;



if(subtitleSize.height > 0){

...

self.titleLabel.frame = CGRectIntegral(CGRectMake(labelX, titleY, titleSize.width, titleSize.height));

self.subtitleLabel.frame = CGRectIntegral(CGRectMake(labelX, titleY + titleSize.height + marginY, subtitleSize.width, subtitleSize.height));

}else{

...

self.titleLabel.frame = CGRectIntegral(CGRectMake(labelX, titleY, titleSize.width, titleSize.height));

self.subtitleLabel.frame = CGRectIntegral(CGRectMake(labelX, titleY + titleSize.height + marginY, subtitleSize.width, subtitleSize.height));

}



CGFloat arrowX = (self.bounds.size.width / 2) - (totalMaxWidth / 2) + (leftViewWidth - self.arrow.bounds.size.width) / 2;

self.arrow.frame = CGRectMake(arrowX,

(self.bounds.size.height / 2) - (self.arrow.bounds.size.height / 2),

self.arrow.bounds.size.width,

self.arrow.bounds.size.height);

self.activityIndicatorView.center = self.arrow.center;

}

}

self.viewForState为一个可变数组, 里面是而且根据状态装入相应state的customView, 首先从通过- (void)setCustomView:forState:方法添加后removeFromSuperview从父视图剥离, 之后根据是否传入了customView决定是否添加自定义视图; 如果没有customView则改变里面arrowView的角度;最后都得改变titleLabel, subtitleLabel, arrow, activityIndicatorView的尺寸或位置;值得注意的是里面的一个方法暴露了demo的年纪, O(∩_∩)O哈哈~

- (CGSize)sizeWithFont:(UIFont *)font constrainedToSize:(CGSize)size lineBreakMode:(NSLineBreakMode)lineBreakMode NS_DEPRECATED_IOS(2_0, 7_0, "Use -boundingRectWithSize:options:attributes:context:") __TVOS_PROHIBITED;

7.0之后已取消, 难怪我感觉没见过这个方法. 哎, 还是太年轻~~~~~

3.2 上拉刷新

话不多说, 先看东西...(此话出自老罗语录??)

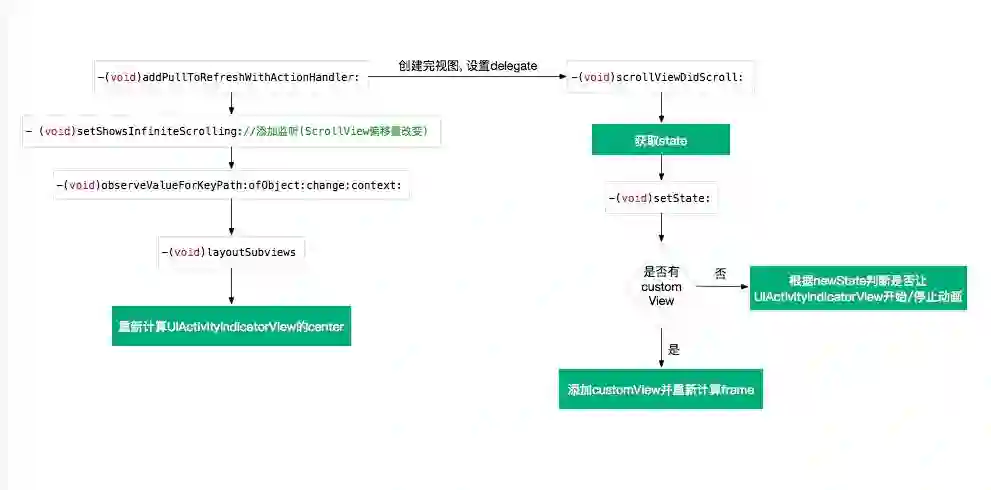

上拉刷新流程图

- (void)setState:(SVInfiniteScrollingState)newState {



if(_state == newState)

return;



SVInfiniteScrollingState previousState = _state;

_state = newState;



for(id otherView in self.viewForState) {

if([otherView isKindOfClass:[UIView class]])

[otherView removeFromSuperview];

}



id customView = [self.viewForState objectAtIndex:newState];

BOOL hasCustomView = [customView isKindOfClass:[UIView class]];



if(hasCustomView) {

[self addSubview:customView];

...

[customView setFrame:CGRectMake(origin.x, origin.y, viewBounds.size.width, viewBounds.size.height)];

}

else {

...

[self.activityIndicatorView setFrame:CGRectMake(origin.x, origin.y, viewBounds.size.width, viewBounds.size.height)];

//根据状态设置activityIndicatorView是否动画

switch (newState) {

case SVInfiniteScrollingStateStopped:

[self.activityIndicatorView stopAnimating];

break;

...

}

}



if(previousState == SVInfiniteScrollingStateTriggered && newState == SVInfiniteScrollingStateLoading && self.infiniteScrollingHandler && self.enabled)

self.infiniteScrollingHandler();

}

上拉刷新相对于下拉, 少了很多东西, 也就简单了一些, 重复性的就不多说了.值得注意的是, 对比下拉, 上拉把layoutSubviews里面东西放到setState:里面. 也是, 毕竟没多少东西, 对比着下拉刷新来看;

4.总结

这次阅读源码，可以说收获满满啊。以前觉得源码阅读是个比较枯燥的过程，可是当我把一个个问题解决了之后，成就感也慢慢累积，感觉就是越读越来劲儿。而且发现读一遍是远远不够的，每看了一遍都多少会有些收获。慢慢的从(这个方法是干什么的)-->(为什么写这个方法)-->(为什么写在这里)，等等一些思考。在对作者称赞??的同时也为自己认识了这种方法而感到高兴。

再接再厉！！！

加油2017！！！
